UL 508A Panel Shop

Custom Pre-Wired Industrial Control Panel

UL 508A panel shop. Every panel meets rigorous UL/cUL standards.
NEMA rated panel enclosures, from NEMA 1 to NEMA 4X.
Polycarbonate enclosure available with NEMA 4X rating, offering protection against harsh environments.
Required components are pre-installed, pre-wired, and clearly labeled.
Thoroughly tested in factory to ensure dependable long term performance.
Wiring and installation errors are virtually eliminated.
The plug-and-play design saves valuable installation time.
Self-powered design and does not require a separate power supply.

Accuenergy offers UL 508A panel shop solutions that can be customized by specifying additional communication devices, branding, panel size, cut-out locations, and more to create a unique panel for your application. Our team of panel designers can help you develop a panel that meets the required specifications, including safety or regulatory considerations. All custom builds are rigorously tested to ensure dependable performance in the long term.

What We Build

Accuenergy is a certified UL 508a panel shop that offers any customization to existing designs or provide new designs with customer-specified components, such as cellular modems, dataloggers, breakers, power supplies, or other hardware while maintaining the UL certification for the entire panel. Every panel we assemble carries UL and cUL certification which is the highest safety standard. This eliminates the need for local inspection, saving installation time and cost.

UL 508A Panels

As a UL508A panel shop, each panel designed and manufactured by Accuenergy meets rigorous, industry-required quality standards. Both standard panels and custom solutions carry UL and cUL certification to ensure safety standard conformance.

Custom Branding

From full-color logos to instructional placards, Accuenergy can custom-print high-resolution labels to outfit any control panel. Printed to order on durable material, specify custom colors, label size, and placement to match brand standards.

Built-to-Print Orders

If you need a custom panel, our manufacturing team can make it a reality. From custom cut-outs and conduit connections to specialized wiring harnesses, our experienced engineers will work through the design process with you to create your UL508A panel.

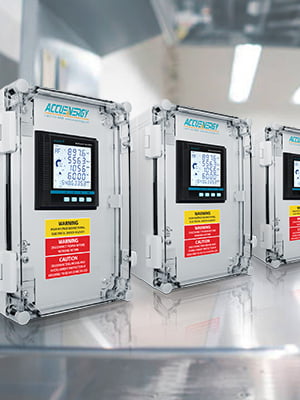

Test & Verification

Every panel we build undergoes rigorous test and verification to ensure device performance and regulatory compliance. All component functions and physical connections are checked at the factory to guarantee seamless operation right out of the box.

Turnkey Solutions

Our turnkey panel solutions are designed to take complicated, time-consuming parts procurement, assembly, and testing off your hands. Our specialists will source all components to manufacture a finished panel solution that is ready for deployment.

OEM Panel Solutions

Partner with Accuenergy to deliver a custom, OEM panel solution to suit your unique metering application. Custom panels are engineered to exacting standards to accommodate Accuenergy meters or any 3rd party device your project may require.

Custom UL 508A Panel Builder

Accuenergy makes it easy to configure a custom panel solution to match your project. From specialized components to unique panel layouts, we can create a custom panel solution to suit any requirement. Contact us for details on custom panel builds.

Acuvim II

Warning Labels

Cellular
Modem

Customer
Specified
Controller

Data Acquisition
Server & Gateway

P1

2nd Power
Supply

Mesh
Communications

Transformer

Terminal blocks
and fuse blocks

Current
Transformer

Pre-Wired Enclosure Includes: Terminal blocks for current transformer input, Shorting blocks for current transformers, Terminal blocks for voltage inputs, Three industrial-grade fuses

UL 508A Panel Shop Features

Clean Factory Wiring

All panel shop assemblies feature reliable, factory-testing wiring connections with clear, easy-to-read labels. Frustrating wiring mistakes will be prevented, streamlining the installation process and eliminating data errors.

Components Included

From shorting blocks for current transformer inputs (9104/9104X) to fused terminal blocks for voltage connections, all components are factory-assembled,colour-coded, and labeled for easy connection and rapid installation.

Pre-Cut Enclosure

Our panel shop assemblies feature customizable holes that are pre-drilled into the panel enclosure, which allow for wiring to be easily routed to the circuit blocks without requiring any additional enclosure modifications.

UL 508A Panel Shop

As a UL 508A panel shop, Accuenergy engineers each panel solution to exacting industry standards, ensuring safety, regulatory compliance, and quality that is superior to other off-the-shelf enclosure solutions.

NEMA-Rated Panels

All panel shop solutions meet up to NEMA 4X requirements to protect devices from tampering, accidental contact, dust, and the environmental elements. The right enclosure extends equipment lifespan and ensures metering integrity.

Secure Solution

Lockable panel enclosures offer next-level security against tampering and the elements. Safeguard metering equipment to protect data integrity while defending against dust or other contaminants, extending the lifespan of your devices.

UL 508A Panel Models

	Custom Panels

Compatible Meters	Any Meters
Application	Custom applications that require a unique panel configuration
Certifications	UL, cUL, UL 508A
NEMA Rating	NEMA 1 - NEMA 4X
Material	Steel or Polycarbonate
Anti-Corrosive	Polycarbonate Only
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use	Polycarbonate Only
Pre-Wired

Custom Panel


Compatible Meters	Any Meters
Application	Custom applications that require a unique panel configuration
Certifications	UL, cUL, UL 508A
NEMA Rating	NEMA 3 or NEMA 4X
Material	Steel or Polycarbonate
Anti-Corrosive	Polycarbonate Only
Dust-Proof
Suitable for Indoor Use
Suitable for Outdoor Use	Polycarbonate Only
Pre-Wired

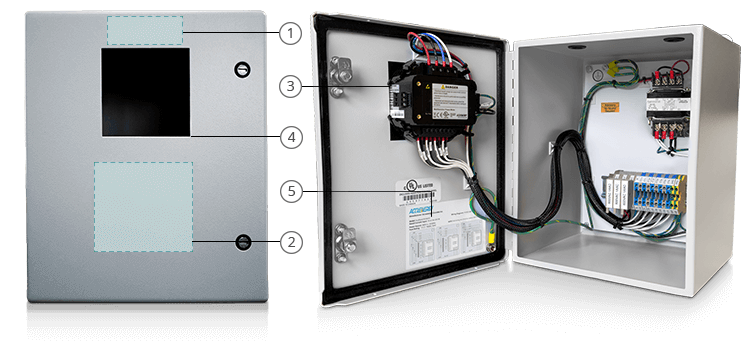

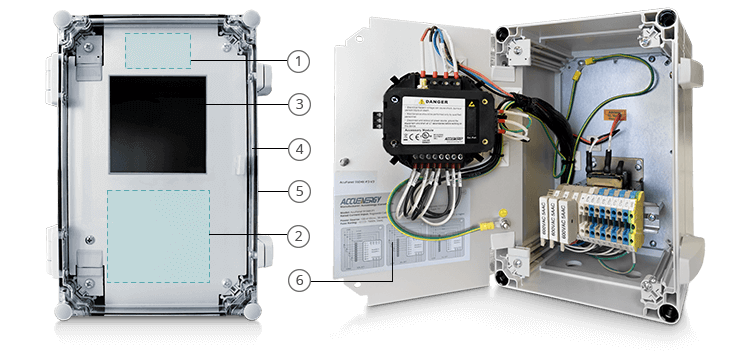

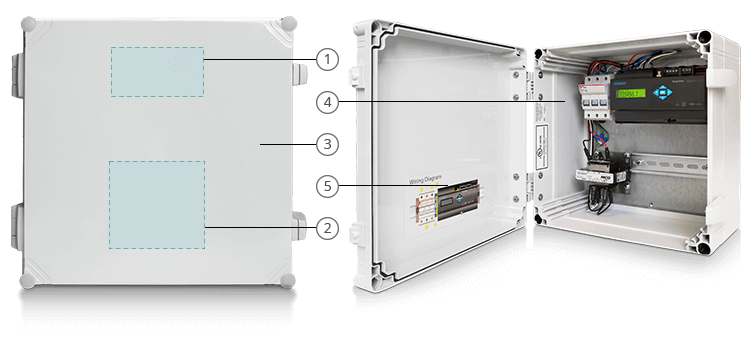

UL 508A Panel Map

1	Showcase your company brand: Add your full color logo to the front of any panel	4	Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure
2	Add custom safety or warning labels to the panel for guaranteed visibility	5	For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs	6	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more

1	Showcase your company brand: Add your full color logo to the front of any panel
2	Add custom safety or warning labels to the panel for guaranteed visibility
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs
4	Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure
5	For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid
6	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more

1	Showcase your company brand: Add custom, full color logos to the front of any panel	4	Adjust the dimensions and location of the front cut-out to suit a variety of devices
2	Add custom safety or warning labels to the front of the panel for guaranteed visibility	5	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs

1	Showcase your company brand: Add custom, full color logos to the front of any panel
2	Add custom safety or warning labels to the front of the panel for guaranteed visibility
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs
4	Adjust the dimensions and location of the front cut-out to suit a variety of devices
5	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more

1	Showcase your company brand: Add custom, full color logos to the front of any panel	4	Specify a customized interior layout to make room for field-installed devices or wiring
2	Add custom safety or warning labels to the front of the panel for guaranteed visibility	5	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs

1	Showcase your company brand: Add custom, full color logos to the front of any panel
2	Add custom safety or warning labels to the front of the panel for guaranteed visibility
3	Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs
4	Specify a customized interior layout to make room for field-installed devices or wiring
5	Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more

UL 508A Accessories

AC Current Transformers

High Specification Line of AC Current Transformers. Custom built in-house, our high accuracy industrial split-core and flexible current transformers are among the industry’s highest specification CT and offer exceptional value.

FAQ

Accuenergy is a UL 508A Panel Shop…what does that mean?

Accuenergy is able to offer any customization to existing designs or provide new designs with customer-specified components, such as cellular modems, data loggers, circuit breakers, power supplies, or other hardware while maintaining the UL certification for the entire panel. Every panel assembled by Accuenergy carries UL and cUL certification which is the highest safety standard in the industry. This eliminates the need for local inspection which saves installation time and cost.

What kinds of custom options does Accuenergy panel shop offer?

In addition to modifying existing designs, the panel shop can create original solutions to suit nearly any customer requirement. These solutions may include custom enclosure dimensions, having multiple meters installed in a single enclosure, the addition of customer-supplied devices, extensive internal layout and device mounting options, opaque lids or removal of the swing panel (polycarbonate panels only), and other custom modifications or designs. Our panel shop will work with you on fulfilling custom requirements while maintaining all UL certifications.

What kinds of 3rd party devices can be added to a custom panel?

Accuenergy UL508A panel shop solutions can be customized to include a wide range of 3rd party devices. The most frequently-requested options include third party meters, cellular modems, gateways, and power supplies, but other equipments can also be added. Contact Accuenergy for advice on designing custom panel solutions.
