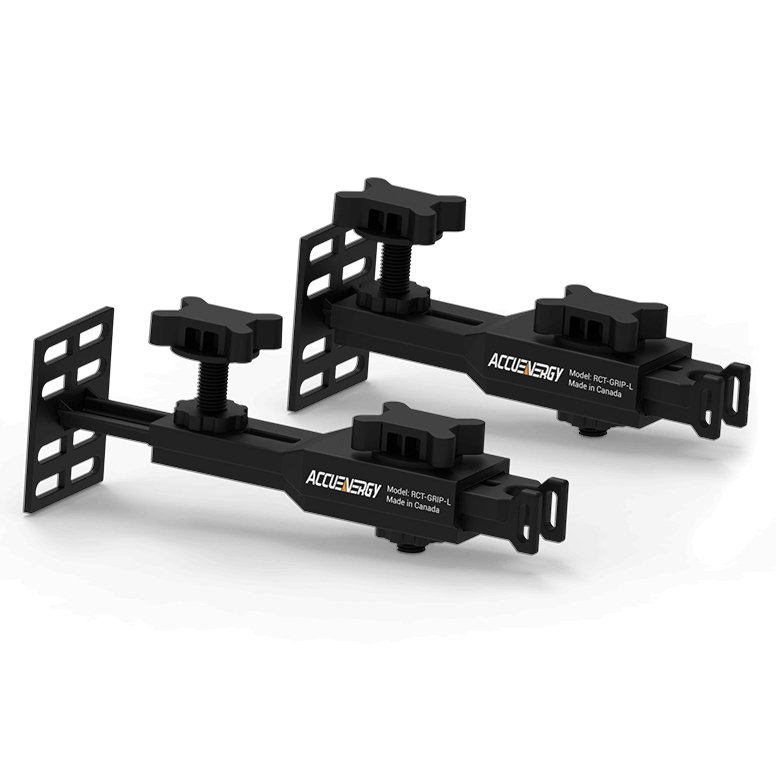

RCT GRIP Kit Large - Side view

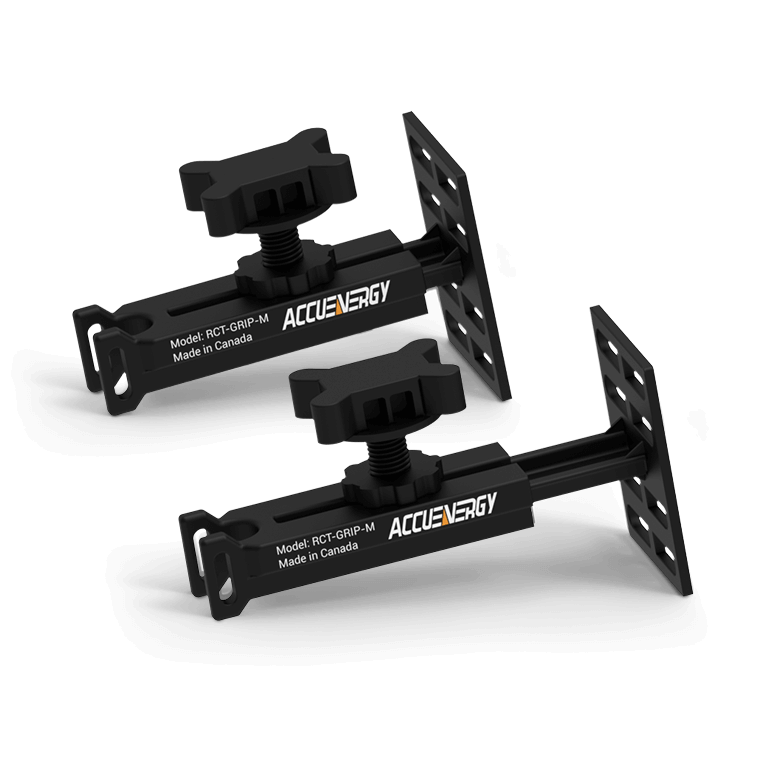

RCT GRIP Kit Medium - Side view
RCT GRIP Kit - Front view

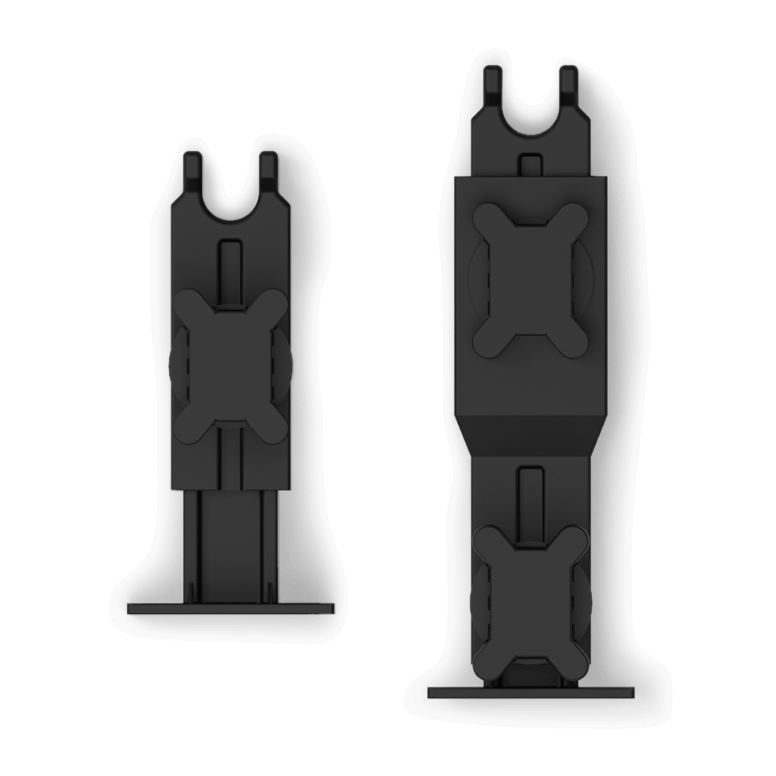

RCT GRIP Kit - Top view

Rogowski Coil Mounting Kit

The RCT Guaranteed Rogowski Installation Performance (GRIP) Kit is designed to securely hold the AcuCT Flex Rogowski coil in place, ensuring proper alignment around the conductor. By preventing shifts or misalignment, it provides the most optimal measurement accuracy and long-term stability, making it an essential accessory for revenue-grade metering applications. Engineered for quick and simple installation, the GRIP Kit reduces mechanical strain on the coil while delivering reliable and precise current readings.

  • Ensure the conductor is centred within the Rogowski coil window to enhance measurement accuracy and optimize performance.
  • Compatible with AcuCT Flex RCT 24, RCT 36, and RCT 47
  • Improves stability in Rogowski coil installations by preventing movement or misalignment that could impact accuracy and reliability.
  • Designed for easy and flexible installation, allowing for quick and secure attachment to a variety of conductors.
  • Works with AcuCT Flex to support revenue-grade tenant billing and cost allocation.

About the RCT GRIP Kit

Why Use a Rogowski Coil Mount?

The accuracy rating of a Rogowski coil can be highly dependent on the relative position of the conductor within the Rogowski coil due to factors that cause uneven distribution. Structural construction of the Rogowski coils and external interference from EMI and temperature can affect the magnetic field lines. These local variations make alignment critical to ensure highest measurement accuracy for any revenue grade solution. If the conductor is not properly aligned, variations in the magnetic field can lead to measurement errors, reducing accuracy and reliability. A Rogowski coil mount secures it in place around a conductor, ensuring proper optimal alignment for accurate current measurement.

RCT GRIP Kit Video

RCT GRIP Kit Accuracy Diagram

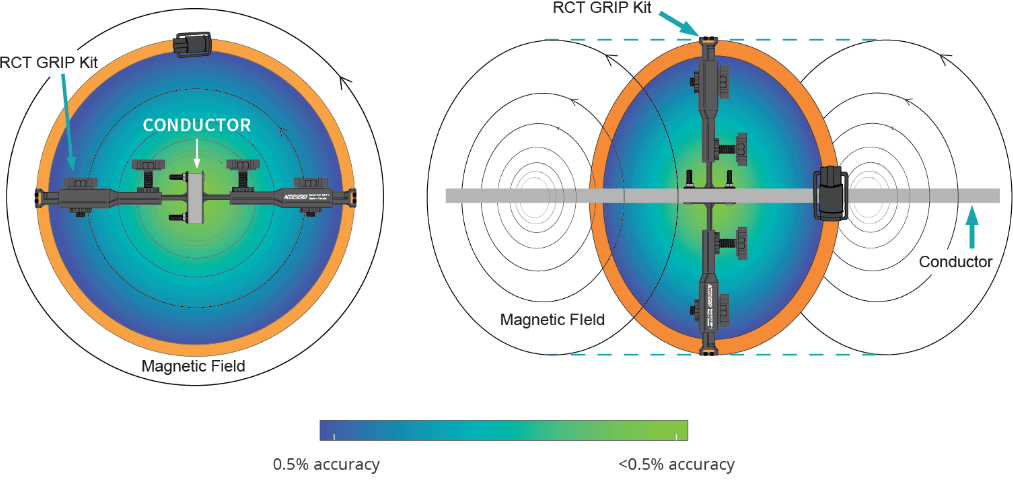

Optimal Placement

The RCT GRIP Kit ensures that the conductor is precisely centred and perpendicular to the Rogowski coil window for the most accurate results.

RCT GRIP Kit Accuracy Diagram - Optimal Placement

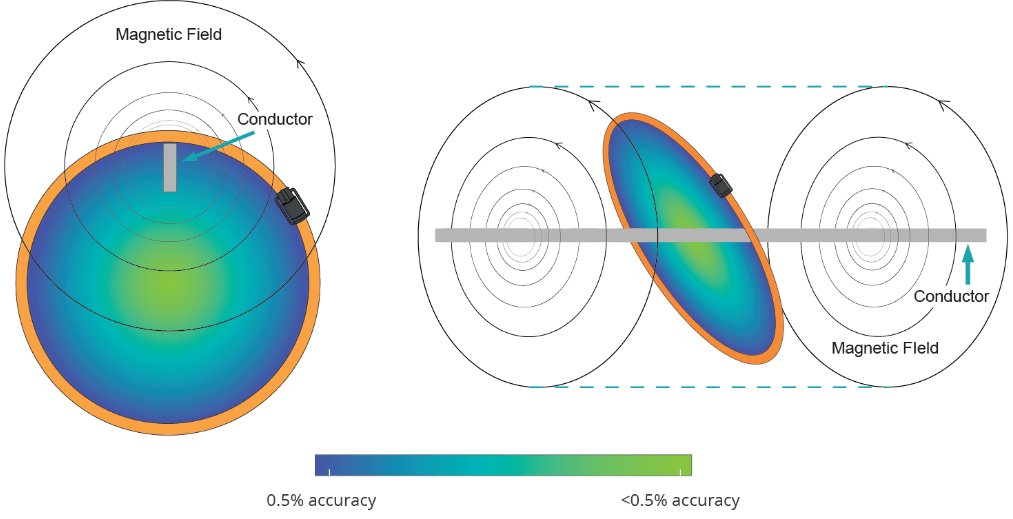

Nonoptimal Placement

When the conductor is not centred and perpendicular within the Rogowski coil window, the measurement accuracy can be impacted negatively.

RCT GRIP Kit Accuracy Diagram - Optimal Placement

RCT GRIP Kit Models

RCT-GRIP-M
Dimensions
Conductor
Weight
Rogowski Coil
RCT-GRIP-M 3.08" to 4.14" x 2.91" x 1.97"
78.25 to 105.25mm x 73.8mm x 50.0mm 		Busbar, Cable 57g AcuCT Flex RCT 24
RCT-GRIP-L
Dimensions
Conductor
Weight
Rogowski Coil
RCT-GRIP-L 5.54" - 7.12" x 2.87" x 1.97"
140.75 - 180.75mm x 73.0mm x 50.0mm 		Busbar, Cable 118g AcuCT Flex RCT 36 and RCT 47
RCT-GRIP-M
RCT-GRIP-M
Dimensions
Conductor
Weight
Rogowski Coil
3.08" to 4.14" x 2.91" x 1.97"
78.25 to 105.25mm x 73.8mm x 50.0mm 		Busbar, Cable 57g AcuCT Flex RCT 24
RCT-GRIP-L
RCT-GRIP-L
Dimensions
Conductor
Weight
Rogowski Coil
5.54" - 7.12" x 2.87" x 1.97"
140.75 - 180.75mm x 73.0mm x 50.0mm 		Busbar, Cable 118g AcuCT Flex RCT 36 and RCT 47
