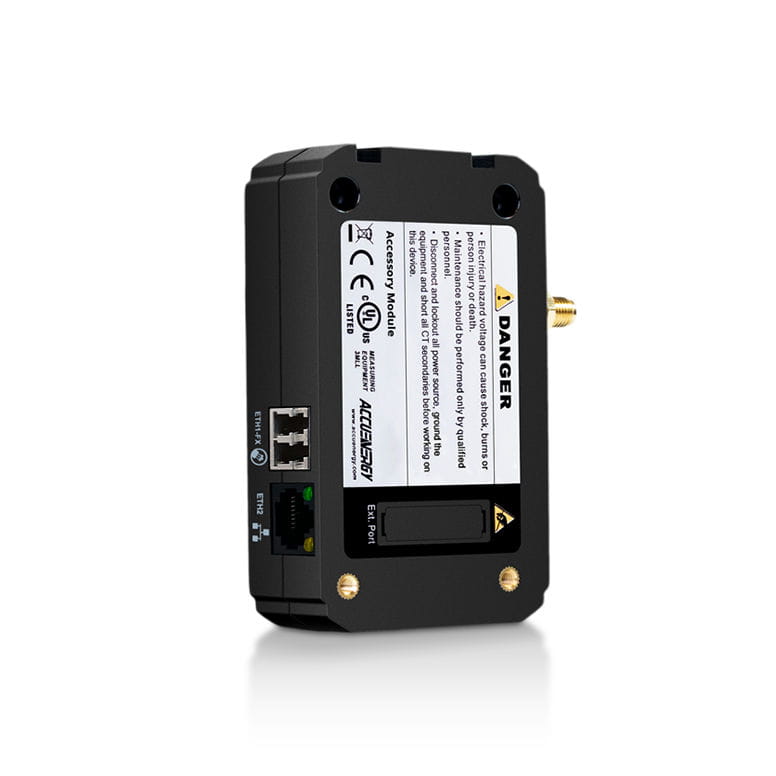

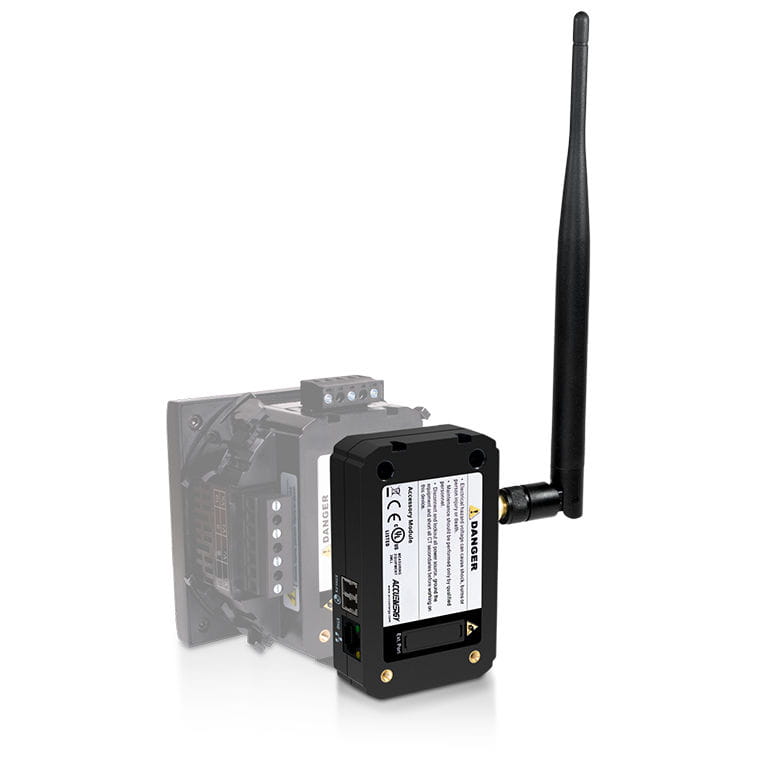

AXM-WEB2-FOLC - right quarter angle view.
AXM-WEB2-FOLC - right quarter angle view.

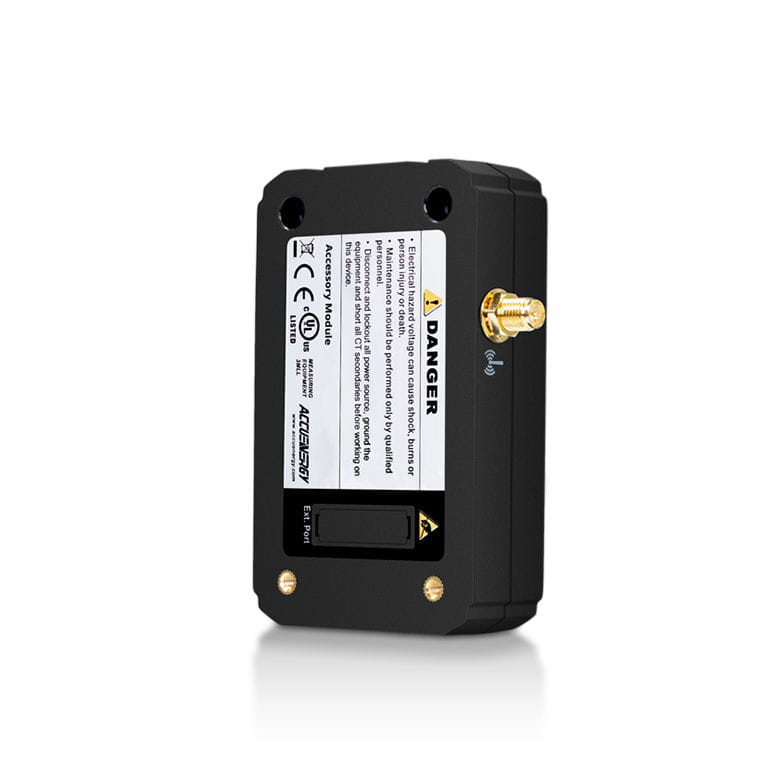

AXM-WEB2-FOLC - left quarter angle view.
AXM-WEB2-FOLC - right quarter angle view.
UL Listed
CE Mark
WiFi

Multi-Protocol IEC 61850 Meter

AXM-WEB2 FOLC module is the premium upgrade for the Acuvim II Series meter designed for multimodal communication. The module combines Ethernet, WiFi, and a Fiber Optic LC connector including IEC 61850 compliance for superior interoperability. It features compatibility with multiple commercial and industrial communications protocols plus an industry-leading 8GB of memory.

  • Designed exclusively for use with the Acuvim II Series power and energy meters
  • Features a Fiber Optic LC Connector plus Ethernet port & WiFi.
  • Multimode cable support for cost-effective, industrial applications
  • Support for multiple industrial, utility, and substation protocols
  • 8GB onboard memory supports 50ms logging interval & stores essential data
  • Meets industry-leading cybersecurity standards to safeguard data
  • Features best-in-class 100ms & 40ms response rate via Modbus TCP/IP protocol

AXM-WEB2 FOLC Overview

Designed for Acuvim II Series

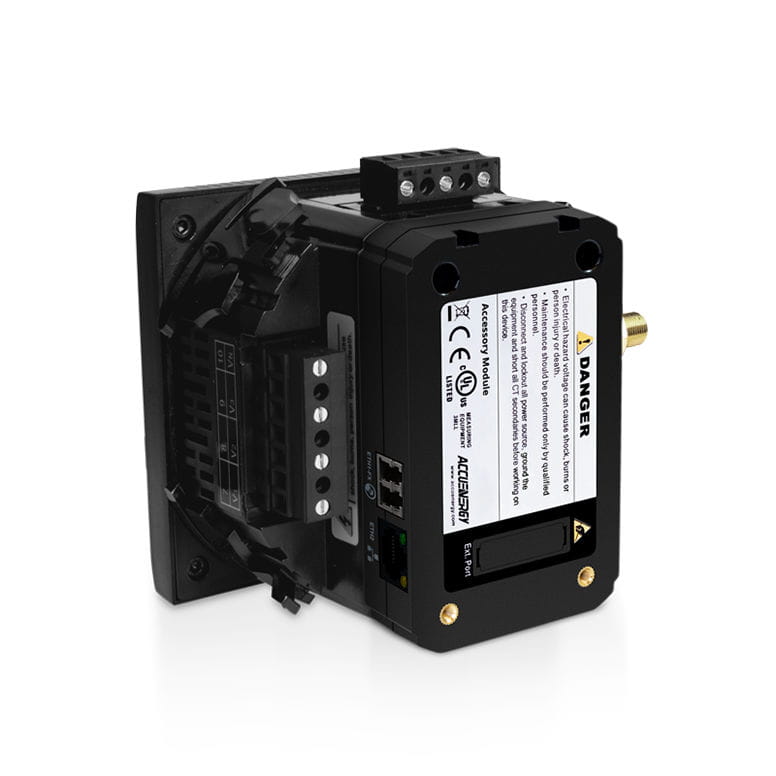

Engineered for the Acuvim II energy meter, the AXM-WEB2 FOLC expands the available options for fiber optic LC, Ethernet and WiFi port. All three connections can be networked simultaneously, providing industry-leading flexibility across a range of applications.

EtherNet/IP Compatibility

The AXM-WEB2 module is fully compatible with the EtherNet/IP application layer protocol commonly found in industrial automation networks. Seamlessly add the Acuvim II+AXM-WEB2 to industrial settings and take advantage of the quick network response times, flexible architecture, and high data throughput of EtherNet/IP.

Multi-Protocol Support

Seamless integration into industrial, utility, and substation networks, the AXM-WEB2 FOLC supports a wide range of standard industry protocols - Modbus TCP/IP, HTTP/HTTPs Post, BACnet IP, DNP 3.0 v2, FTP, and more. View Full Chart. View Full Chart

IEC 61850 Certification

AXM-WEB2 FOLC paired with any Acuvim II meter is IEC 61850 compliant. When combined with the Acuvim IIW power meter, it is 3rd party certified for IEC 61850 (2nd ed.) requirements for seamless, rapid deployment and guaranteed interoperability in substations and other critical facilities.

Applications
  • Power Utilities
  • SCADA Systems
  • Central Utilities
  • Battery Storage Systems
  • Data Centers
  • Renewable Energy
  • Smart City
  • Automation & Control
Acuvim II & AXM-RS485 front quarter angle view.
Fiber Optics Twisted Pair
  • Signal transmission via glass fiber
    		•
  • Signal transmission through metallic (copper) conducting wire
    		•
  • Small diameter - thin and flexibl
    		•
  • Larger diameter
    		•
  • Up to 2000 meter range
    		•
  • Best for short distances
    		•
  • Resistant to interference
    		•
  • Susceptible to interference
    		•
  • Inherently secure
    		•
  • Low security; susceptible to intrusion
    		•
  • Low transmission loss (low attenuation)
    		•
  • High transmission loss (high attenuation)
    		•

    Communication Modules

    Our AXM line of pluggable expansion modules offer you the ability to customize your protocol choice. Connect up to three modules to a single Acuvim II or Acuvim-L Series meter.

    Meter Only
    AXM-WEB2-D
    AXM-WEB2
    AXM-WEB2 FOLC
    AXM-WEB PUSH
    Interface
    Ethernet RJ45 Port 2 2 1 1
    Fiber Optics LC 1
    Wi-Fi 1 1
    Data Logging
    Local Memory 16MB 8GB 8GB 8GB 4GB
    Ethernet Protocol Support
    Modbus TCP/IP
    BACnet-IP
    IEC 61850*
    DNP 3.0 Over IP
    EtherNet/IP
    IPv6 and IPv4
    MQTT
    Networking Protocols Supported
    RSTP
    SNMP
    Serial Protocol
    Modbus RTU
    Data Post
    HTTP/HTTPs
    FTP/sFTP
    JSON
    Web Server
    Remote Access URL
    Trend Logs / Load Profile
    OTA Updates
    COMtrade format for waveform capture

    * Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.

    Meter Only
    Local Memory 16MB
    Modbus RTU
    AXM-WEB2-D
    Ethernet RJ45 Port 1
    Local Memory 8GB
    Modbus TCP/IP
    BACnet-IP
    IEC 61850*
    DNP 3.0 Over IP
    EtherNet/IP
    IPv6 and IPv4
    MQTT
    RSTP
    SNMP
    Modbus RTU
    HTTP/HTTPs
    FTP/sFTP
    JSON
    Remote Access URL
    Trend Logs / Load Profile
    OTA Updates
    COMtrade format for waveform capture
    AXM-WEB2
    Ethernet RJ45 Port 2
    Wi-Fi
    Local Memory 8GB
    Modbus TCP/IP
    BACnet-IP
    IEC 61850*
    DNP 3.0 Over IP
    EtherNet/IP
    IPv6 and IPv4
    MQTT
    RSTP
    SNMP
    Modbus RTU
    HTTP/HTTPs
    FTP/sFTP
    JSON
    Remote Access URL
    Trend Logs / Load Profile
    OTA Updates
    COMtrade format for waveform capture
    AXM-WEB2 FOLC
    Ethernet RJ45 Port 1
    Fiber Optics LC 1
    Wi-Fi
    Local Memory 8GB
    Modbus TCP/IP
    BACnet-IP
    IEC 61850*
    DNP 3.0 Over IP
    EtherNet/IP
    IPv6 and IPv4
    MQTT
    RSTP
    SNMP
    Modbus RTU
    HTTP/HTTPs
    FTP/sFTP
    JSON
    Remote Access URL
    Trend Logs / Load Profile
    OTA Updates
    COMtrade format for waveform capture
    AXM-WEB PUSH
    Local Memory 4GB
    Modbus TCP/IP
    DNP 3.0 Over IP
    SNMP
    Modbus RTU
    HTTP/HTTPs
    FTP/sFTP
    Remote Access URL
    OTA Updates

    * Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.

    AXM-WEB2 FOLC Product Map

    AXM-WEB2 FOLC product image.

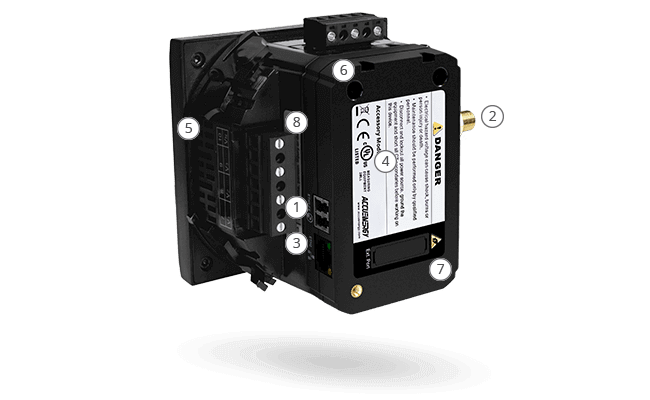

    1

    Fiber Optic LC Connector

    Fast, reliable communication with 2km reach

    		 5

    Acuvim II Compatibility

    Works with any Acuvim II Series meter
    2

    WiFi Communication

    Supports access point & station mode

    		 6

    Multi-Protocol Support

    Industrial, utility, & substation protocols
    3

    Ethernet Communication

    Connect to networks or data acquisition systems

    		 7

    Onboard Memory

    8GB non-volatile memory with 50ms logging
    4

    UL Listed

    Meets industrial safety standards

    		 8

    Data Encryption & Security

    Meets industry-leading cybersecurity standards
    1

    Fiber Optic LC Connector

    Fast, reliable communication with 2km reach
    2

    WiFi Communication

    Supports access point & station mode
    3

    UL Listed

    Meets global industrial safety standards
    4

    UL Listed

    Meets industrial safety standards
    5

    Acuvim II Compatibility

    Works with any Acuvim II Series meter
    6

    Multi-Protocol Support

    Industrial, utility, & substation protocols
    7

    Onboard Memory

    8GB non-volatile memory with 50ms logging
    8

    Data Encryption & Security

    Meets industry-leading cybersecurity standards

    AXM-WEB2 FOLC Features

    Data logging icon.
    Data Logging & Event Storage

    The AXM-WEB2 FOLC module expands the Acuvim II Series memory capacity to an industry-leading 8GB with 50ms interval data logging. Most metering parameters, including energy and power quality data, can be recorded for later download or analysis.

    RSTP compliant icon.
    RSTP Compliant

    The AXM-WEB2 FOLC supports robust RSTP (Rapid Spanning Tree Protocol) network architecture, which permits Ethernet ports to be daisy chained and allow the simultaneous connection of up to 32 devices to a single network switch or router. RSTP promotes high availability and "loop free" topology within Ethernet networks, improving network speeds and reducing downtime by providing critical resiliency to network faults or hardware failures.

    Enterprise level security icon.
    Enterprise-Level Security

    Security With the AXM-WEB2 FOLC, protecting sensitive energy data and permitting access to authorized users is simple with robust, secure data encryption. Fully compatible with industry-standard wireless security options, the AXM-WEB2 helps to keep your energy data secure with WPA or WPA2 Enterprise security protocols. In addition, outbound emails transmitted over a network are secured by TLS 1.2 encryption protocol.

    IEC 61850 certification icon.
    IEC 61850 Certification

    When combined with the Acuvim IIW power meter, the AXM-WEB2 FOLC communication module has been 3rd party certified to meet demanding IEC 61850 (2nd ed.) requirements for seamless deployment and guaranteed interoperability in substations and other critical facilities.

    Fiber Optic LC Port icon.
    Fiber Optic LC Port

    Compact, yet powerful, the AXM-WEB2 FOLC features a duplex fiber optic LC port that utilizes a 1.25mm ferrule and is significantly smaller than competing SC connectors. Superior to twisted pair cables, fiber optics provides fast, reliable signal transmission between the meter and the hub/switch with a 2km reach. Supporting multimode fiber, the most widely used type of fiber optic cable, the AXM-WEWB2 FOLC is ideal for industrial applications and a diverse range of installation options.

    Built-In WEB2 Web Interface

    WEB2 metering harmonics.
    WEB2 metering harmonics. WEB2 waveform log. WEB2 phase angle. WEB2 alarm log. WEB2 dashboard view.
    WEB2 metering harmonics thumbnail.
    WEB2 waveform log thumbnail.
    WEB2 phase angle thumbnail.
    WEB2 alarm log thumbnail.
    WEB2 dashboard view thumbnail.

    Access Data Anytime, Anywhere in the World

    Remote access icon.
    Remote Access

    Take a deep dive into energy data anywhere, anytime. Access the interface with a web browser to view & configure your submetering devices. No software needed.

    Trend log icon.
    Trend Log

    Monitor real-time data in tabular or graphical format. Choose between different energy parameters or time periods for analysis and troubleshooting.

    Harmonics detection icon.
    Harmonics Detection

    Uncover power quality issues by viewing voltage & current waveforms. The harmonics view includes vital insight for each phase angle every 15 seconds.

    Two-tier user control icon.
    Two-Tier User Control

    Robust administrative settings give you full control. Energy managers can provide read-only access access without compromising the security of sensitive energy data.
