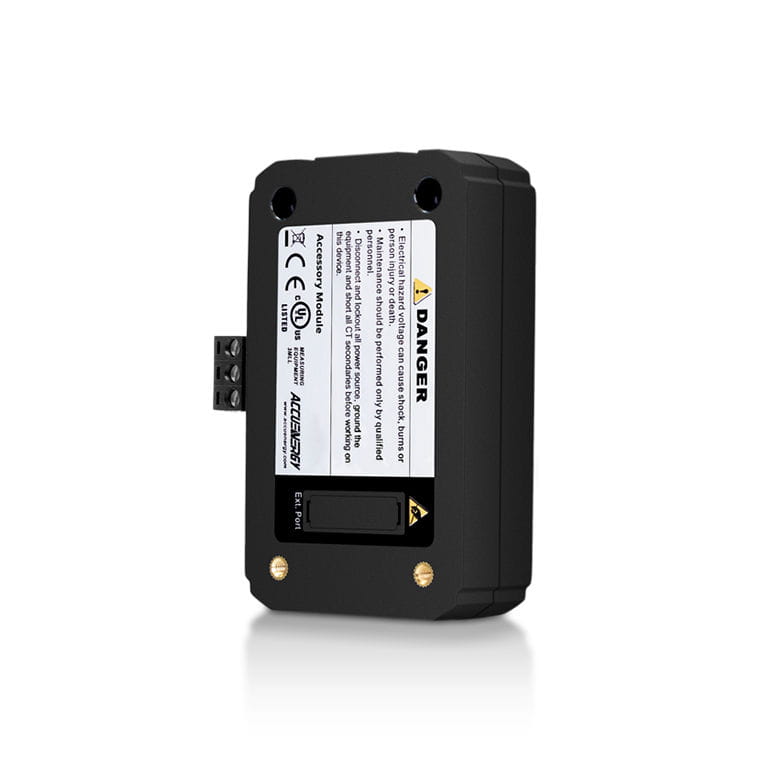

AXM-RS485 - right quarter angle view.
AXM-RS485 - right quarter angle view.

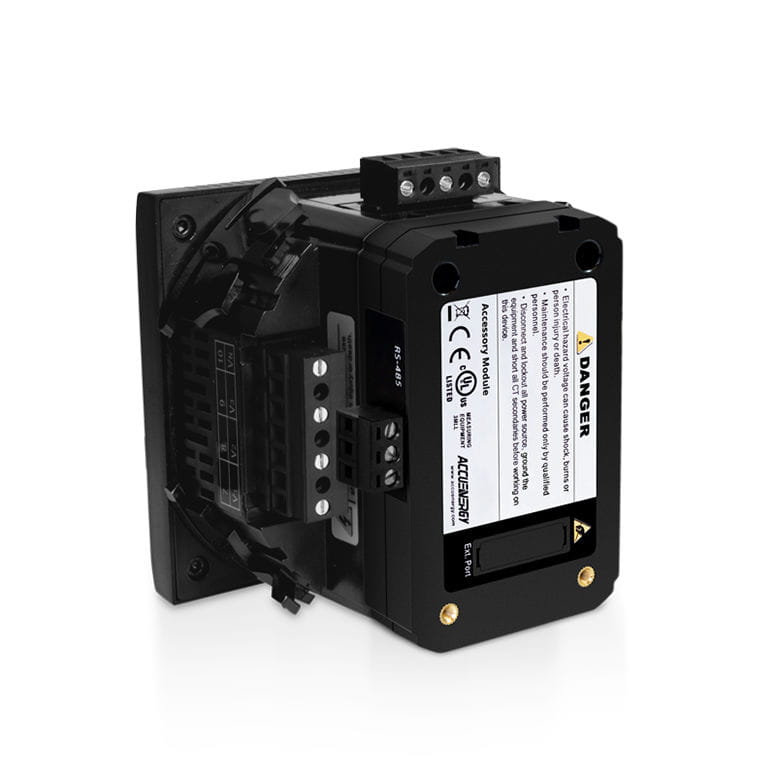

AXM-RS485 - left quarter angle view.
AXM-RS485 - right quarter angle view.
UL Listed
CE Mark

Modbus RTU Power Meter

AXM-RS485 Communication Module

Designed for the Acuvim II power & energy meter, the AXM-RS485 provides the Acuvim II meter with a second RS485 serial port that can be used simultaneously with the built-in port, providing added communications flexibility. Modbus RTU protocol provides straightforward integration into building management or industrial automation applications.

  • Designed exclusively for use with the Acuvim II Series power and energy meters
  • Uses Modbus RTU protocol to provide real-time energy data in BMS or IAS applications
  • Adds a second RS485 port to the Acuvim II meter which can be used simultaneously with the primary port
  • Quick module installation for easy field upgrades

AXM-RS485 Overview

Designed for Acuvim II Series

Gain an additional RS485 port by adding the AXM-RS485 communications module to the Acuvim II Series energy meter. Operating with Modbus RTU protocol, the AXM-RS485 communication module is essential for building automation and control systems and provides seamless integration into facility management applications for critical monitoring of essential energy parameters.

Why Choose Modbus RTU Communications?

Widely used in building management systems (BMS) and industrial automation systems (IAS), Modbus RTU is a broadly implemented serial protocol with proven reliability and a simple structure. The RS485 physical layer is supported across SCADA systems, servers, and data acquisition programs for dependable interoperability across devices and efficient integration between systems.

Applications
  • Building Management Systems
  • Industrial Automation Systems
  • Energy Monitoring

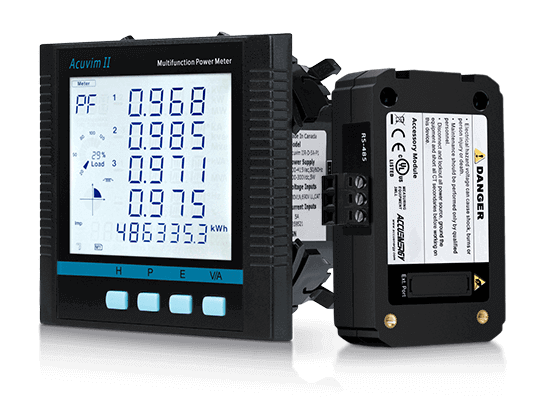

Acuvim II & AXM-RS485 front quarter angle view.

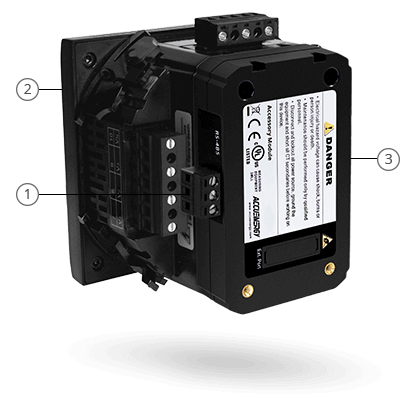

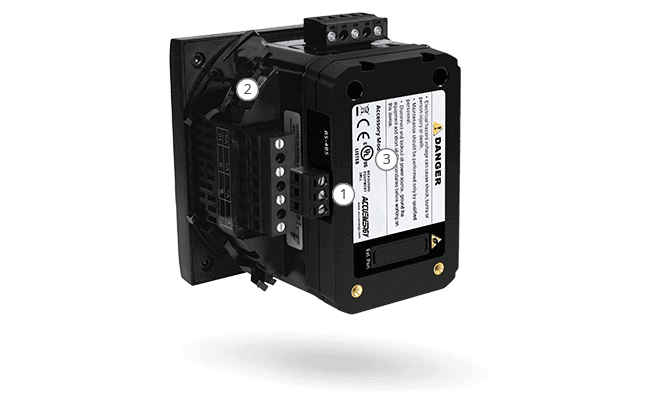

AXM-RS485 Product Map

AXM-RS485 product image.
1

Modbus RTU via RS485 Communications

Designed for building management or industrial automation systems

 3

UL Listed

Meets industrial safety standards
2

Acuvim II Compatibility

Works with any Acuvim II Series meter
1

Modbus RTU via RS485 Communications

Designed for building management or industrial automation systems
2

Acuvim II Compatibility

Works with any Acuvim II Series meter
3

UL Listed

Meets industrial safety standards

AXM-RS485 Features

field expandable icon.
Field Expandable

Adding the AXM-RS485 communication module to the Acuvim II is easy and can be performed in the field without specialized tools. Simply click the module into place to add a second RS485 port to the meter.

seamless integration icon.
Seamless Integration

Ready to integrate with any building management or industrial automation systems, the AXM-RS485 uses industry-standard Modbus RTU protocol to communicate essential electrical system parameters for efficient energy management.
