The Acuvim II Series power and energy meters are the simple, robust solution for power monitoring, kWh metering, power quality analysis, and more. This multifunction meter is engineered for easy integration into any project environment and a wide array of plug-in expansion modules facilitate communication on over 15 different industry-standard protocols. The IEC 61000-4-30 Class S compliance ensures Acuvim II can accurately measure power quality events like harmonics, voltage sags, and swells.
An AC energy meter is a specialized device engineered to collect a variety of AC power or energy data for a single load or an entire system. Generally installed adjacent to an electrical panel or within switchgear, an AC energy meter may continuously gather data to provide detailed insight into consumption patterns, load profiles, and system performance. In addition, some AC energy meters also measure power quality parameters, allowing facilities professionals to stay ahead of harmful PQ issues, protect sensitive equipment, and reduce downtime.

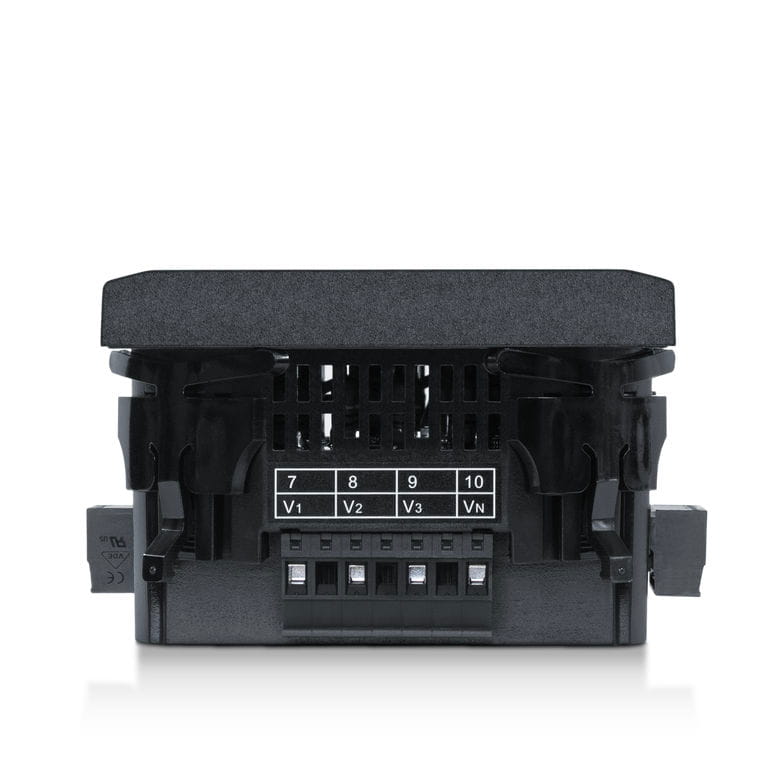

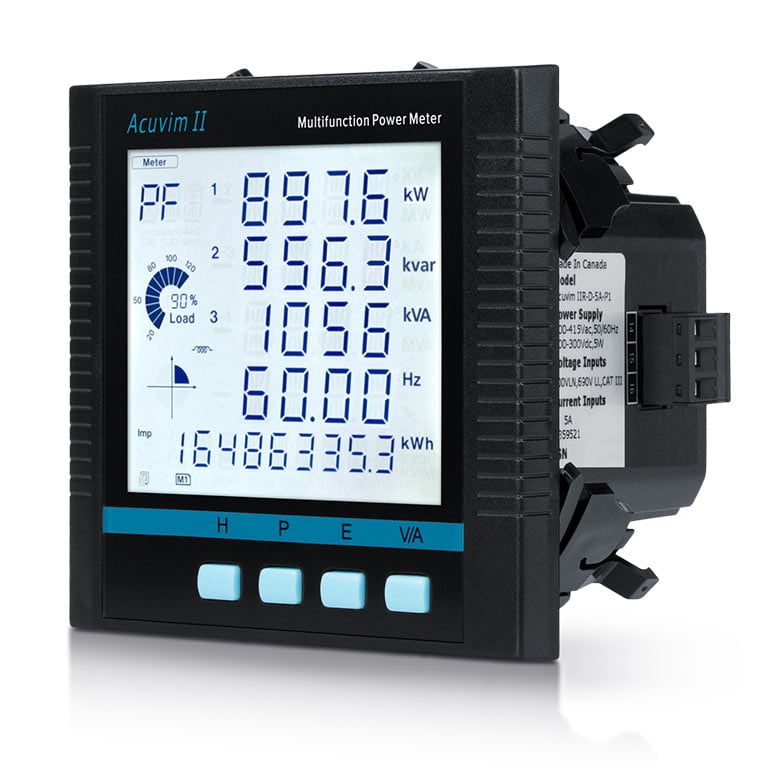

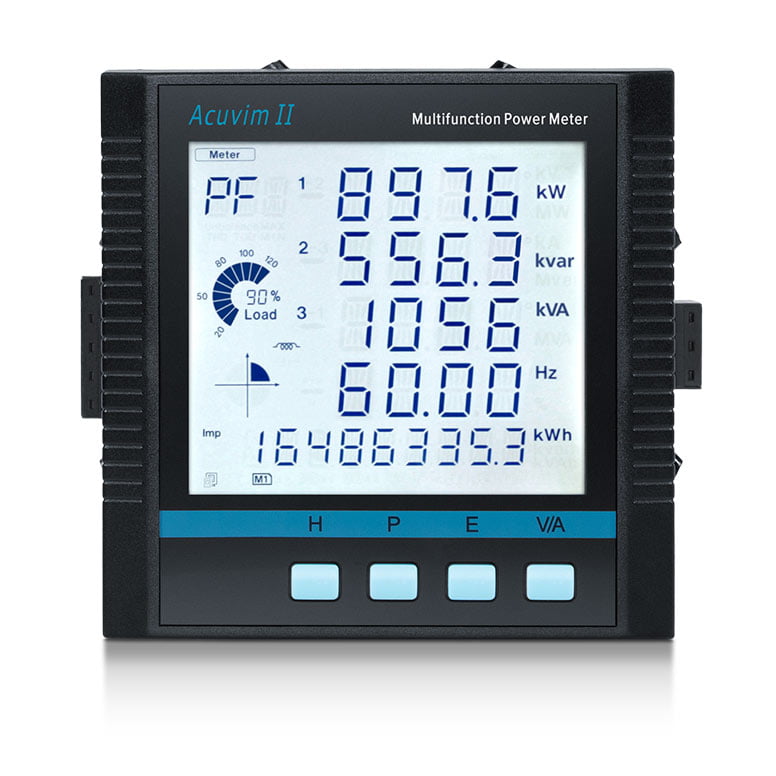

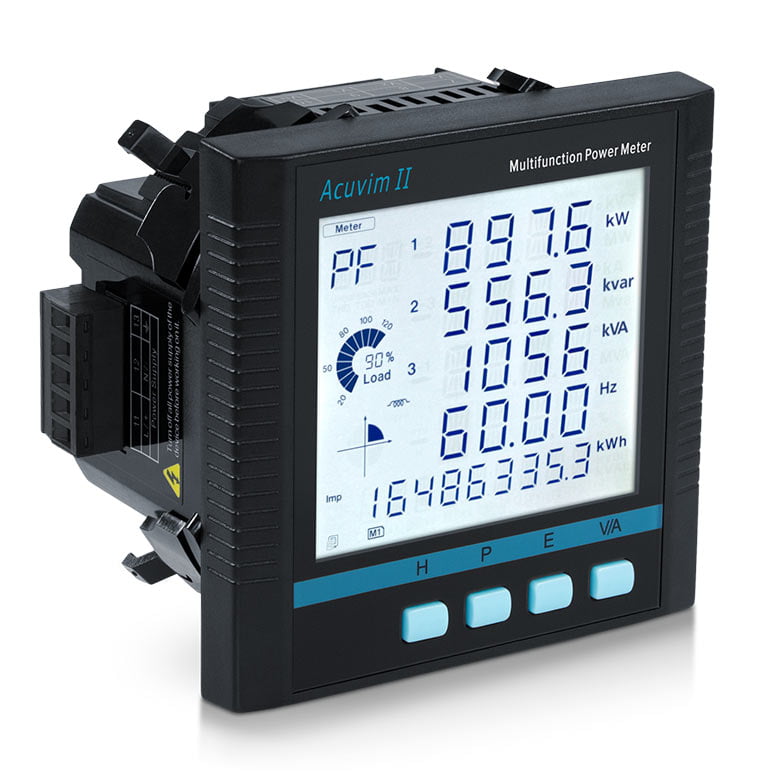

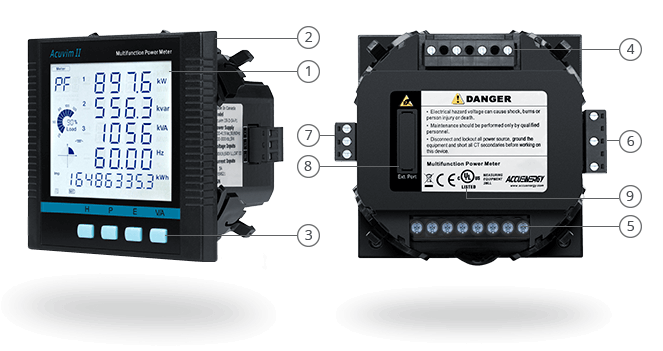

The Acuvim II is a premium power and energy measurement instrument capable of delivering superior results across a wide range of AC measurement applications. With a variety of customizable options including form factor, current sensor choices, & communication protocols, easily configure the meter to match any project objective.

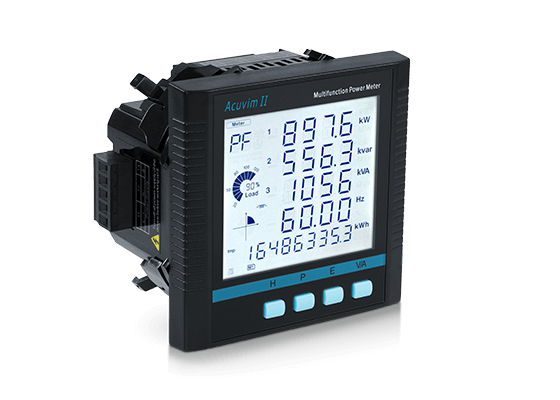

| Select an Acuvim II Model |
|---|
| Available in four different configurations, each one engineered for a specific project environment. |
| Choose a Form Factor |
| Configure as a Panel Mount meter with a digital display or as a DIN Rail Transducer. |
| Choose a Current Input Option |
| Choose a current input option for the Acuvim II: 5A/1A, Rogowski Coil (RCT), 333mV, or 80/100/200mA. |
| Select a Power Supply |
| Two power supply options: P1 is for 100-415Vac (50/60Hz) and 100-300Vdc systems. P2 is compatible with a 20-60Vdc source. |
| Select an Optional Communication Module |
| The AXM line of expansion modules increases the range of available protocol options. |
| Choose Optional Accessories |
| Customize your meter with a range of helpful accessories. |
Access robust data logging capabilities by pairing the Acuvim II energy & power meters with the AXM-WEB2 module. With 8GB of internal memory, capture an array of metering parameters for future download or analysis.

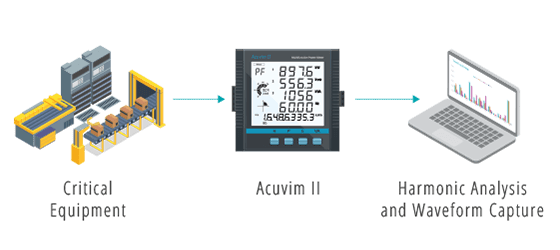

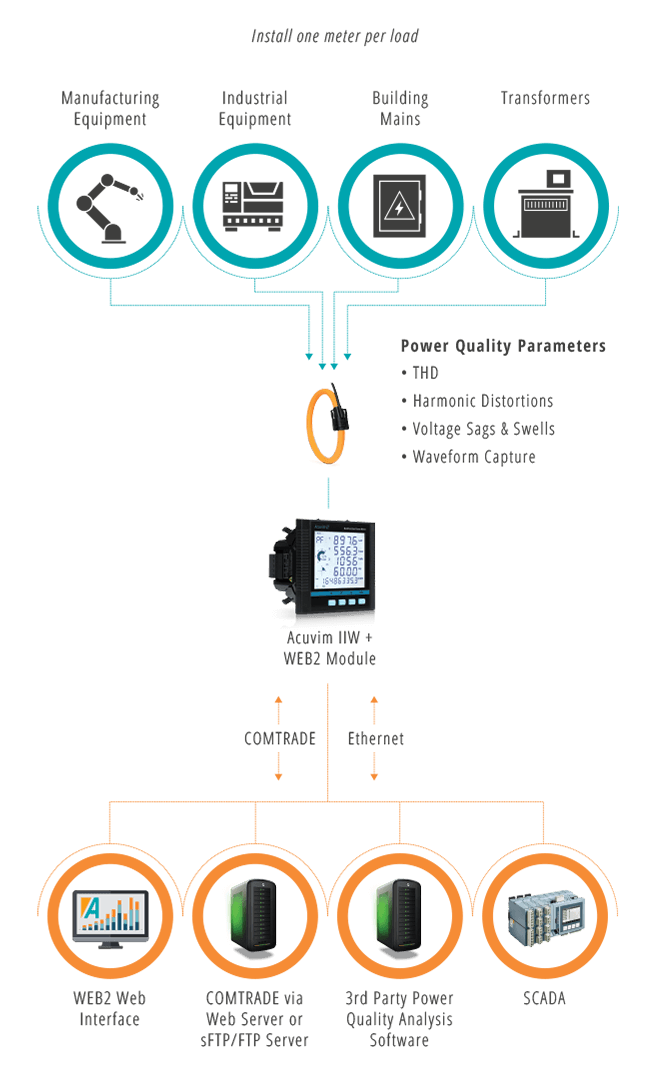

The Acuvim IIW power meter can detect energy deviations using harmonic analysis, event logging, and waveform capture. Use the detailed PQ data to diagnose power quality issues before they cause system inefficiency.

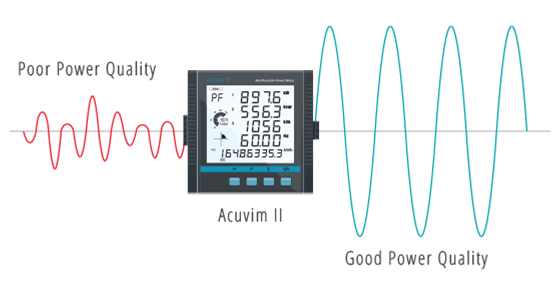

The Acuvim IIW can record voltage & current waveforms. The instrument supports a settable triggering condition and data can be stored for later analysis.
The Acuvim II meter monitors over 400 essential measurement parameters with superior accuracy. Ideal for revenue submetering projects, such as tenant billing or cost allocation, the Acuvim II meter's revenue grade accuracy delivers precise, reliable data in critical applications.
Connect a variety of communications modules directly to the Acuvim II meter to support numerous industrial, open protocols for seamless integration into nearly any existing building management system.
Avoid insecure or unreliable port forwarding solutions by using a dedicated remote access URL to access critical data from any device with an internet connection. The built-in web server offers comprehensive meter access without complicated network configuration.
 Data Acquisition |
|---|
Access robust data logging capabilities by pairing the Acuvim II energy & power meters with the AXM-WEB2 module. With 8GB of internal memory, capture an array of metering parameters for future download or analysis.
 Power Quality Monitoring |
|---|
The Acuvim IIW power meter can detect energy deviations using harmonic analysis, event logging, and waveform capture. Use the detailed PQ data to diagnose power quality issues before they cause system inefficiency.
 Waveform Capture |
|---|
The Acuvim IIW can record voltage & current waveforms. The instrument supports a settable triggering condition and data can be stored for later analysis.

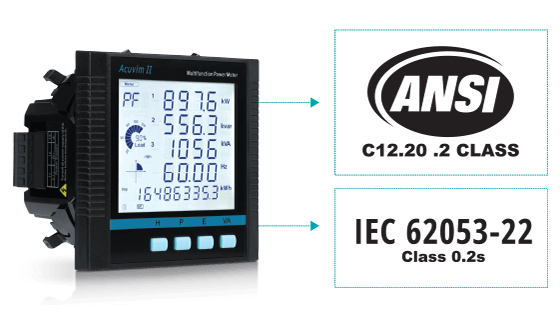

 Industry-Leading Accuracy |
|---|
The Acuvim II meter monitors over 400 essential measurement parameters with superior accuracy. Ideal for revenue submetering projects, such as tenant billing or cost allocation, the Acuvim II meter's revenue grade accuracy delivers precise, reliable data in critical applications.
 Multi-Protocol Support |
|---|
Connect a variety of communications modules directly to the Acuvim II meter to support numerous industrial, open protocols for seamless integration into nearly any existing building management system.

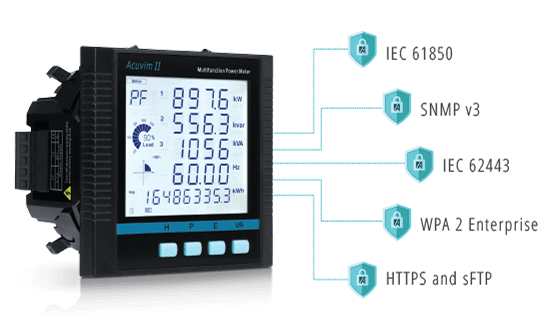

 Guaranteed Data Security |
|---|
Avoid insecure or unreliable port forwarding solutions by using a dedicated remote access URL to access critical data from any device with an internet connection. The built-in web server offers comprehensive meter access without complicated network configuration.
Acuvim IIR |
|---|
Acuvim IIW |
|---|
Acuvim II Standard Model is MODBUS-RTU and DNP 3.0 ready. Our AXM line of pluggable expansion modules offer you the ability to customize your protocol choice.
METER | AXM | AXM | AXM-WEB2-D | AXM | AXM | AXM | |
|---|---|---|---|---|---|---|---|
 AXM-IO1 | AXM-IO2 | AXM-IO3 | |
|---|---|---|---|
| Digital Input | 6 | 4 | 4 |
| Digital Output | 2 | ||
| Analogue Input | 2 | ||
| Analogue Output | 2 | ||
| Relay Output | 2 | 2 | |
| Power Supply | 24Vdc |
METER ONLY |
|---|
| Local Memory | 8MB |
|---|---|
| Modbus-RTU | |
| BACnet MS/TP |
AXM WEB2 FOLC |
|---|
| Local Memory | 8GB |
|---|---|
| Modbus TCP/IP | |
| BACnet-IP | |
| IEC 61850 | |
| DNP 3.0 Over IP | |
| EtherNet/IP | |
| IPv6 | |
| MQTT | |
| RSTP | |
| SNMP | |
| Wi-Fi | |
| HTTP/HTTPs | |
| FTP/sFTP | |
| JSON | |
| Remote Access URL | |
| Trend Logs / Load Profile | |
| OTA Updates | |
| COMtrade format for waveform capture | |
AXM WEB2 |
|---|
| Local Memory | 8GB |
|---|---|
| Modbus TCP/IP | |
| BACnet-IP | |
| IEC 61850 | |
| DNP 3.0 Over IP | |
| EtherNet/IP | |
| IPv6 | |
| MQTT | |
| RSTP | |
| SNMP | |
| Wi-Fi | |
| HTTP/HTTPs | |
| FTP/sFTP | |
| JSON | |
| Remote Access URL | |
| Trend Logs / Load Profile | |
| OTA Updates | |
| COMtrade format for waveform capture | |
AXM-WEB2-D |
|---|
| Local Memory | 8GB |
|---|---|
| Modbus TCP/IP | |
| BACnet-IP | |
| IEC 61850 | |
| DNP 3.0 Over IP | |
| EtherNet/IP | |
| IPv6 | |
| MQTT | |
| RSTP | |
| SNMP | |
| HTTP/HTTPs | |
| FTP/sFTP | |
| JSON | |
| Remote Access URL | |
| Trend Logs / Load Profile | |
| OTA Updates | |
| COMtrade format for waveform capture | |
AXM WEB PUSH |
|---|
| Local Memory | 4GB |
|---|---|
| Modbus TCP/IP | |
| DNP 3.0 Over IP | |
| SNMP | |
| HTTP/HTTPs | |
| FTP/sFTP | |
| Remote Access URL | |
| OTA Updates | |
AXM PROFI |
|---|
| Profibus-DP (V0) | |
|---|---|
AXM RS485 |
|---|
| Additional RS485 for Modbus RTU | |
|---|---|
AXM-IO1 |
|---|
| Digital Input | 6 |
|---|---|
| Relay Output | 2 |
| Power Supply | 24Vdc |
AXM-IO2 |
|---|
| Digital Input | 4 |
|---|---|
| Digital Output | 2 |
| Analogue Output | 2 |
AXM-IO3 |
|---|
| Digital Input | 4 |
|---|---|
| Analogue Input | 2 |
| Relay Output | 2 |
Designed for Acuvim II Series energy meter’s 96mm by 96mm display. Crucial in harsh environments, it increases the IP environmental rating of a meter's display to IP66 or NEMA 4X.
This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from Acuvim II meters to other devices with a USB port.
Adapter provides the option to mount the Acuvim II meter on a DIN rail either at a horizontal or vertical angle. It is easily secured to the meter or AXM modules.
Pre-configured, pre-wired panel solution is ideal for on-site installations need to meet regional regulatory safety and environmental compliance. All panels are quality tested to be reliable and fault-free.
The Acuvim II power meter support multiple current inputs: 5A/1A, 333mV and Rogowski Coil, and 80mA/100mA/200mA. They are among the industry’s highest accuracy metering CT offering exceptional value.
A maximum of three modules may be attached to the meter at the same time.
The meter supports single phase systems. Single phase 2-wire and single phase 3-wire are supported. The wiring configuration should be set to 1LN, 1CT for single phase 2-wire and 1LL, 2CT for single phase 3-wire systems.
Yes, you can use a jumper to power the meter as long as the voltage input is within the meter's control power limit of 100-415Vac for P1 meters and 20-60Vdc for P2 meters. V1 on the voltage input can be jumped to "L" on the meter's power supply terminal and V2 of the voltage input can be jumped to "N." NOTE: If there is a neutral in the system you can jump the neutral from the voltage input to the ‘N’ terminal of the meters power supply, and use one of the voltage inputs to connect to 'L'.
The LCD screen refresh rate is 1 second while the Modbus data updates in the registers at a 100ms refresh rate.
Yes, the Acuvim II meter supports SunSpec. The SunSpec registers can be found in the download section of the website as well as in the meter's user manual.
Yes, the Acuvim II can be used to monitor 400Hz systems. In addition, the meter can automatically detect and adapt to the frequency of the electrical system.
The meter takes 512 samples per cycle.
Acuview software can be downloaded by using the link below and scrolling down to the 'Acuvim II' Section. www.accuenergy.com/support/product-support-documents/
Yes, the meter may be powered up using only one voltage wire (V1) and the neutral wire (Vn). This may be accomplished by jumping the voltage phase wires.
We do not recommend extending over 50m. If you choose to extend the CT leads according to this guideline, we suggest that using a twisted pair of cables. Adding shielding is also recommended best practice.
