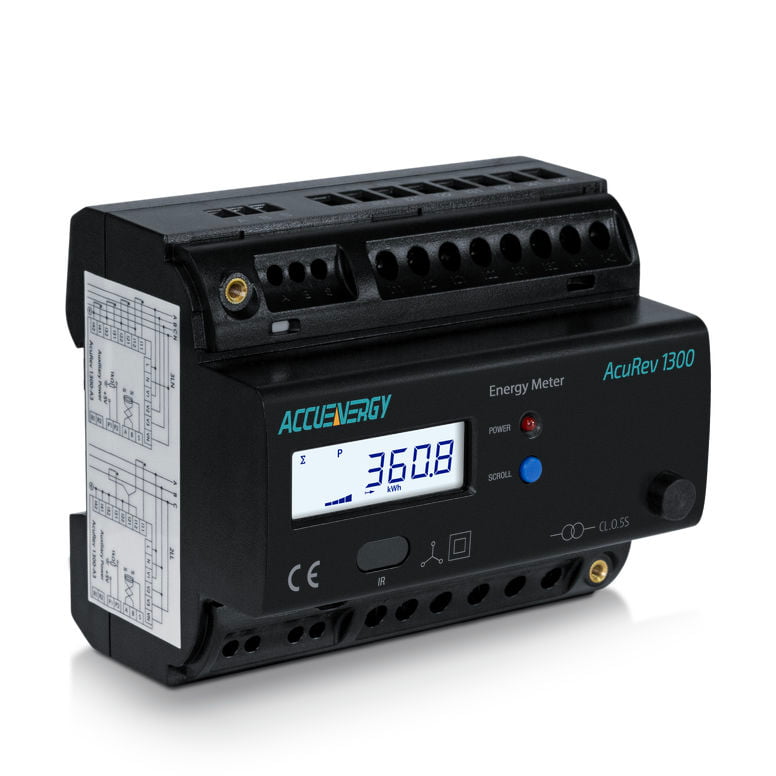

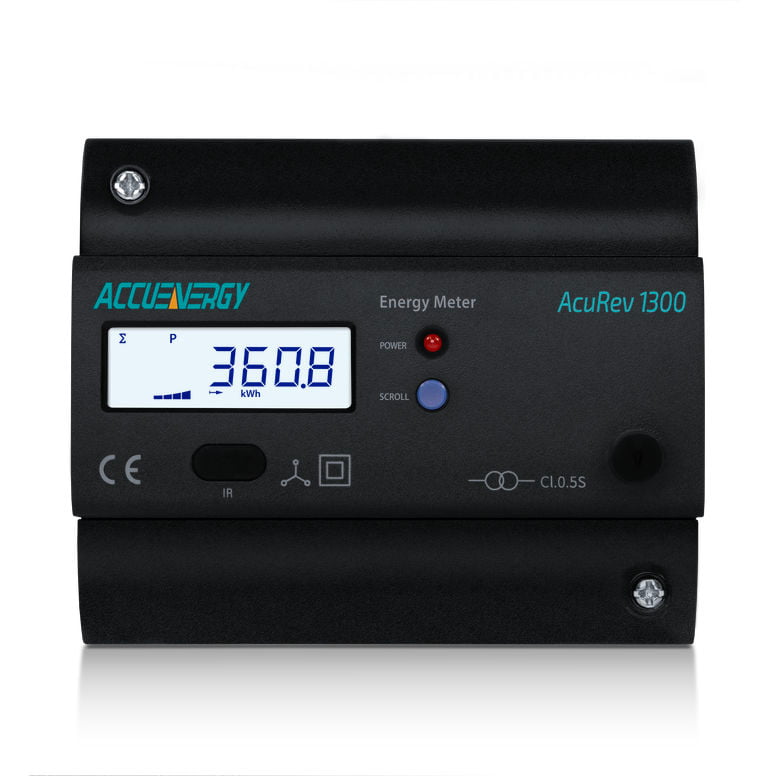

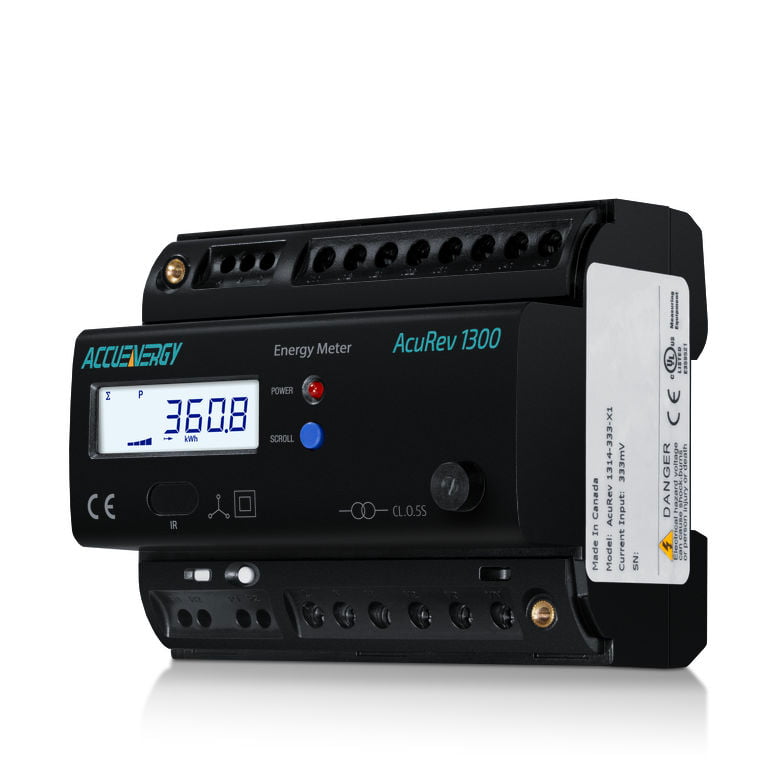

The AcuRev 1310 DIN Rail meter is engineered for high performance and easy integration into industrial or commercial facilities. Designed for cost-effective power and energy monitoring, it features a built-in LCD to simplify setup and provide quick access to metered data. Modbus-RTU and pulse output communications allow for seamless integration with data acquisition systems.
Unlike a panel mounted power meter, a DIN rail power meter has a form factor that is specifically engineered to attach to a section of standard, TS35 DIN rail. This makes meter installation exceptionally fast and easy, reducing overall installation time. In addition to the meter, power supplies or other accessories can be positioned adjacent to the meter along the DIN rail, further increasing convenience at the installation site. Or multiple meters can be installed together while only taking up minimal space. Therefore, DIN rail power meters are often a popular choice in crowded electrical cabinets where space is limited.

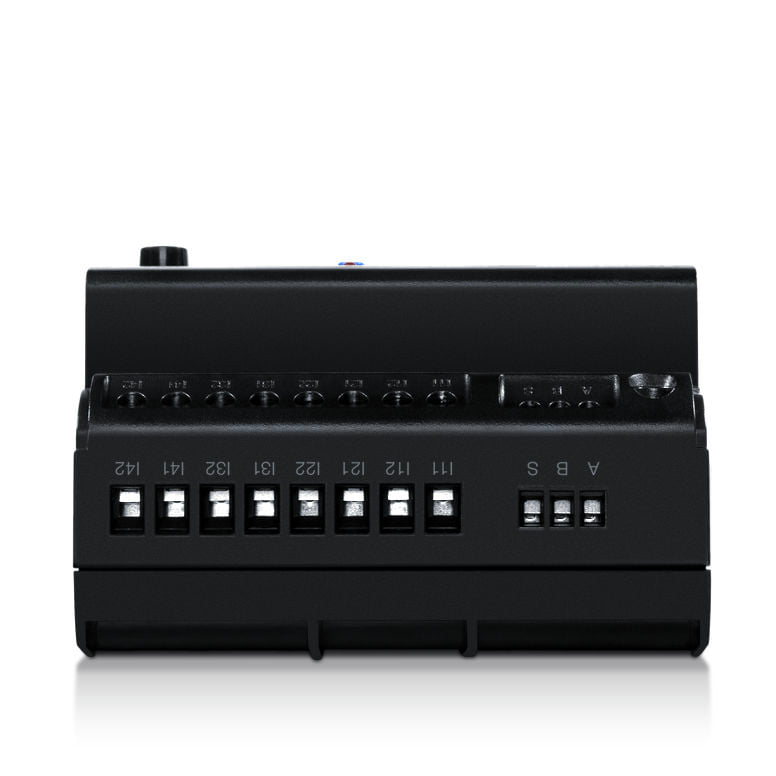

The AcuRev 1310 combines high-performance measurements with a functional, DIN rail mount design for fast installation. Each meter is capable of measuring across all voltage ratings up to 690Vac and is equipped four current channels to capture neutral current measurements. Select from a variety of current input and I/O options to further tailor the meter to a specific application.

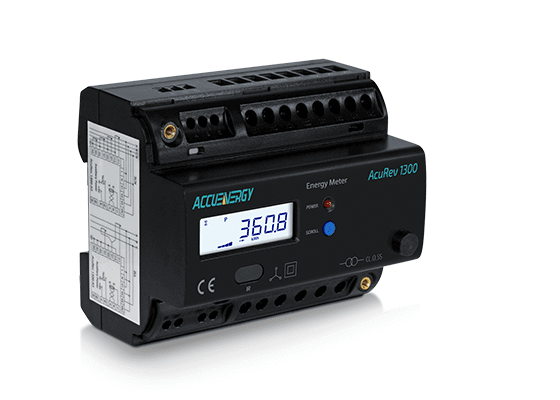

| Select an AcuRev 1310 Model |
|---|
| Available in four different configurations, each one engineered for a specific project environment. |
| Choose a Current Input Option |
| Choose from four available current input options: 5A, mV, RCT (Rogowski), or mA. |
| Select an I/O Option |
| Add an optional relay output for alarm functionality or remote control. |
| Choose Optional Accessories |
| Customize your meter with a range of helpful accessories. |
The AcuRev 1310 meters meets strict revenue grade accuracy requirements to support high-precision data collection in building energy management systems.
Designed to be tamper proof and certified for revenue applications, the AcuRev 1310 meets stringent Measurement Canada requirements.
By passing rigorous, industry-standard conformance testing, the AcuRev 1310 is BTL Certified to ensure BACnet compliance and interoperability in building automation systems found throughout the world.
The AcuRev 1310 Series is compatible with most voltage services without the need for a potential transformer (PT). In addition, monitor a variety of electrical systems including three-phase three-wire, three-phase four-wire, single-phase, and more.
The AcuRev 1310 includes standard SunSpec Modbus registers to help facilitate easy integration into solar PV or energy storage applications in industrial, commercial, or utility-scale solar systems.
 Utility Revenue Grade Accuracy |
|---|
The AcuRev 1310 meters meets strict revenue grade accuracy requirements to support high-precision data collection in building energy management systems.

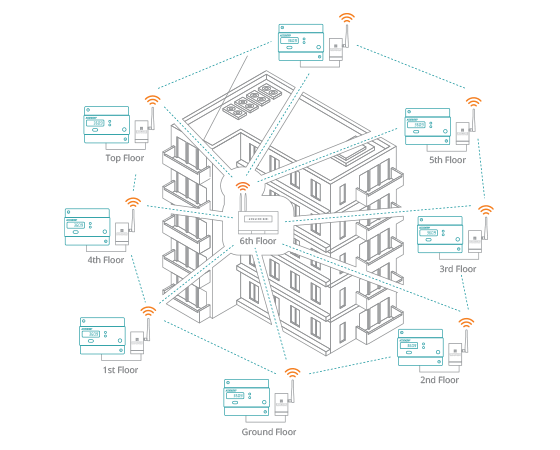

 Measurement Canada Approved |
|---|
Designed to be tamper proof and certified for revenue applications, the AcuRev 1310 meets stringent Measurement Canada requirements.
 BTL Listed |
|---|
By passing rigorous, industry-standard conformance testing, the AcuRev 1310 is BTL Certified to ensure BACnet compliance and interoperability in building automation systems found throughout the world.

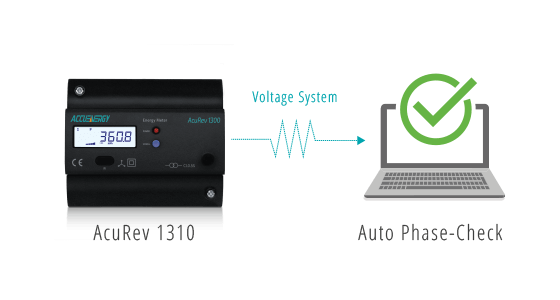

 Universal Rating |
|---|
The AcuRev 1310 Series is compatible with most voltage services without the need for a potential transformer (PT). In addition, monitor a variety of electrical systems including three-phase three-wire, three-phase four-wire, single-phase, and more.

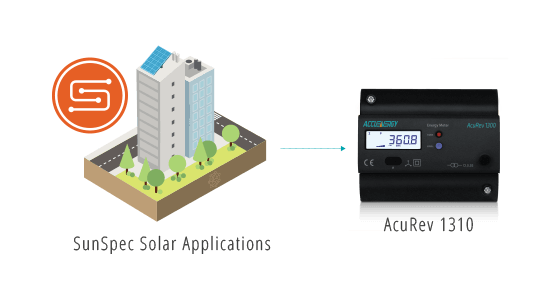

 SunSpec Compliance |
|---|
The AcuRev 1310 includes standard SunSpec Modbus registers to help facilitate easy integration into solar PV or energy storage applications in industrial, commercial, or utility-scale solar systems.
AcuRev 1311 |
|---|
| Application | Realtime energy monitoring |
|---|---|
| Metering | Energy, Voltage, Current, Active Power |
| Phase Check | |
| Sun Spec Compliance | |
| Neutral Current | Calculated |
| Current Sensing Input | Choose from 5A/1A, 80mA/100mA/200mA, 333mV, or RCT (Rogowski) |
| Power Supply | 100-415Vac, 50/60Hz, 100-300Vdc |
AcuRev 1312 |
|---|
AcuRev 1313 |
|---|
AcuRev 1314 |
|---|
This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from AcuRev 1310 meters to other devices with a USB port.

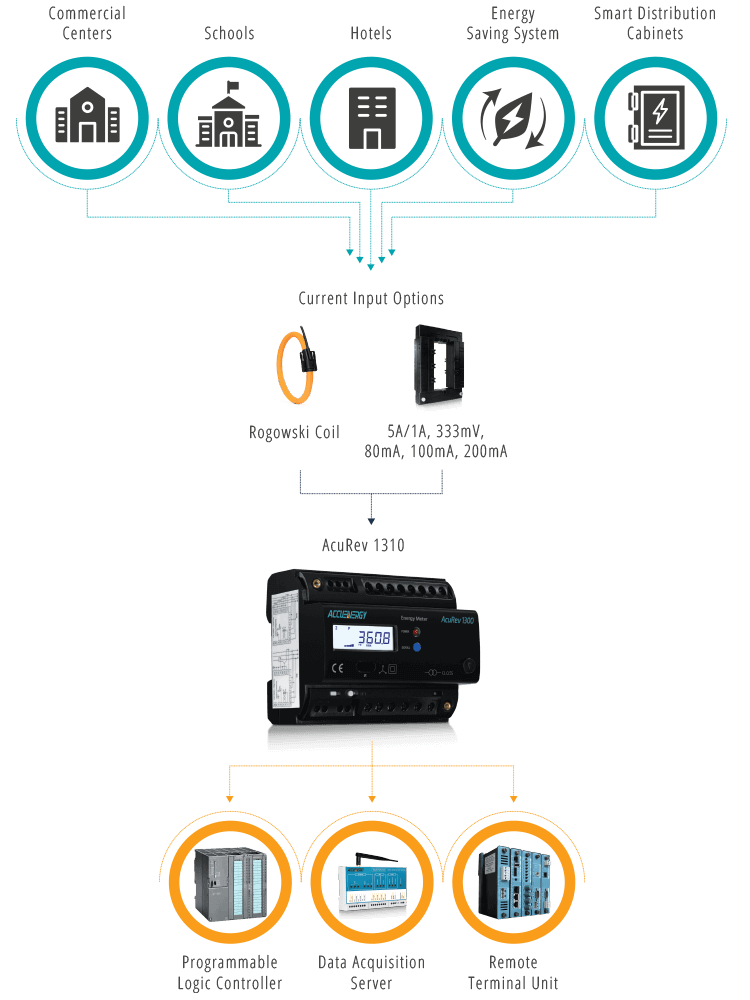

The AcuRev 1310 power meter support multiple current inputs: 5A/1A, 333mV and Rogowski Coil, and 80mA/100mA/200mA. They are among the industry’s highest accuracy metering CT offering exceptional value.
Enclosure offers a secure wall-mounted option for the AcuRev 1310 meter. IP66/67 rated to ensure protection from dust, water, and corrosion. Meter and other devices can be mount inside via DIN rail.
When the seal is installed, no changes may be made to the meter.
By default, the AcuRev 1310 series only displays the total kWh reading. If you wish to see other parameters, they can be added through the AcuRev 1310 Utility Software in the General Settings under the "Displayed Scan Parameters" section. Once the parameters are added, press "SCROLL" on the meter to cycle through the parameters.
The AcuRev 1310 meter supports SunSpec registers. The SunSpec registers can be found in the Download section of the website as well as in the meter's user manual.
Yes, the AcuRev 1310 (as well as all other Accuenergy meters) are bi-directional instruments. They support bi-directional current measurement and can measure both consumed and generated energy, making them ideal for renewable energy applications.
