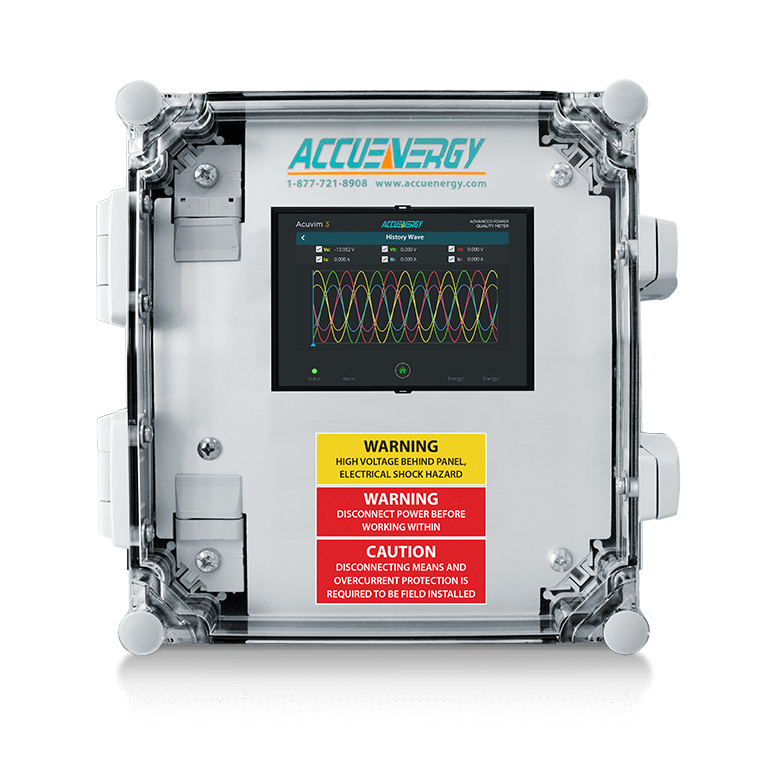

Pre-Wired Power Quality Control Panel
Pre-wired, factory assembled, and rigorously tested, the AcuPanel 9108X power quality control panel is designed to provide reliable, durable and accurate energy measurements. With the NEMA 4X rating, it can withstand the toughest industrial environmental conditions, suitable for indoor and outdoor uses. The panel comes with the Acuvim 3 advanced power quality analyzer, which provides IEC 61000-4-30 Class A compliant power quality monitoring.
- Integrated with the best-of-class Acuvim 3 advanced power quality meter with IEC 61000-4-30 Class A compliance.
- Self-powered design supports line-to-neutral connections without the need for an external power supply.
- Durable polycarbonate enclosure with NEMA 4X rating for indoor & outdoor use.
- Clearly labeled, rigorously tested components are pre-wired & factory-assembled for quick installation, no extra testing required.
- Tamper-proof design with metrology seals for enhanced security.
- Lockable housing provides additional protection against unauthorized access.
- Pre-cut wire entry points for easy cable routing.
- Grounding included within the enclosure for simplified setup.
- Eliminates the need for a control transformer.
- UL Listed and UL 508A certified for safe and dependable operation.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF |
Custom Branding
The AcuPanel 9108X supports custom branding, allowing businesses to incorporate their logo, instructional placards, and other design elements directly onto the panel. This feature ensures consistency with corporate branding while delivering a polished and professional appearance.

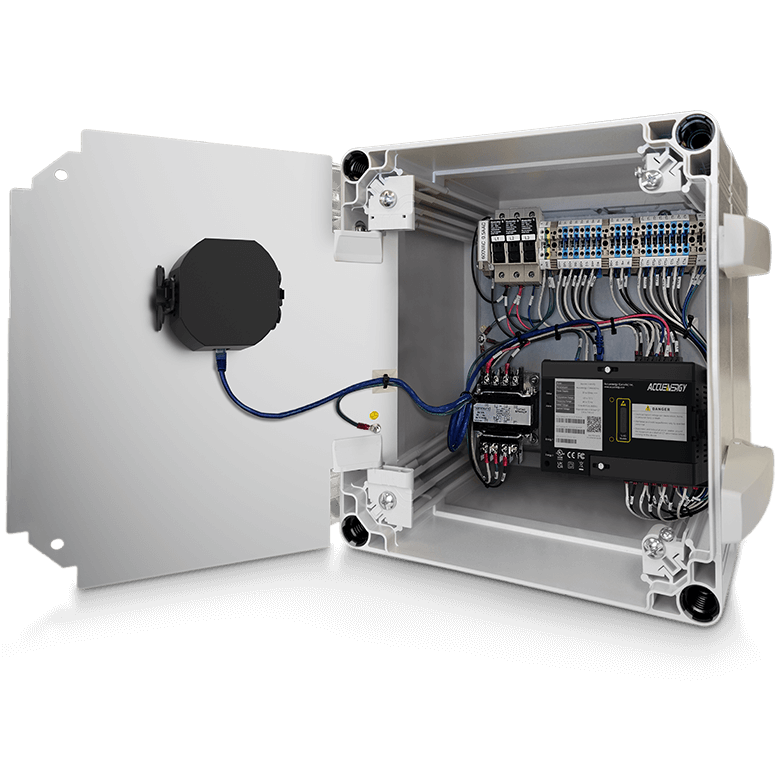

Pre-Wired & Tested
The AcuPanel 9108X is factory-assembled with all components pre-wired and thoroughly tested before delivery. This eliminates the need for on-site wiring, reducing installation time, minimizing errors, and ensuring optimal performance right out of the box.
Self-Powered Solution
The AcuPanel 9108X simplifies installation with a self-powered design that requires no separate power source and can be directly connected in a line-to-neutral configuration. The integrated grounding setup ensures easy integration into any existing power system, reducing installation time and making it ideal for OEM projects.
Revenue-Grade Precision
Equipped with the Acuvim 3 advanced power quality analyzer, the AcuPanel 9108X delivers revenue-grade accuracy compliant with IEC 62053-22 Class 0.1S and ANSI C12.20 Class 0.1 standards. This precision supports tenant billing and consumption tracking.

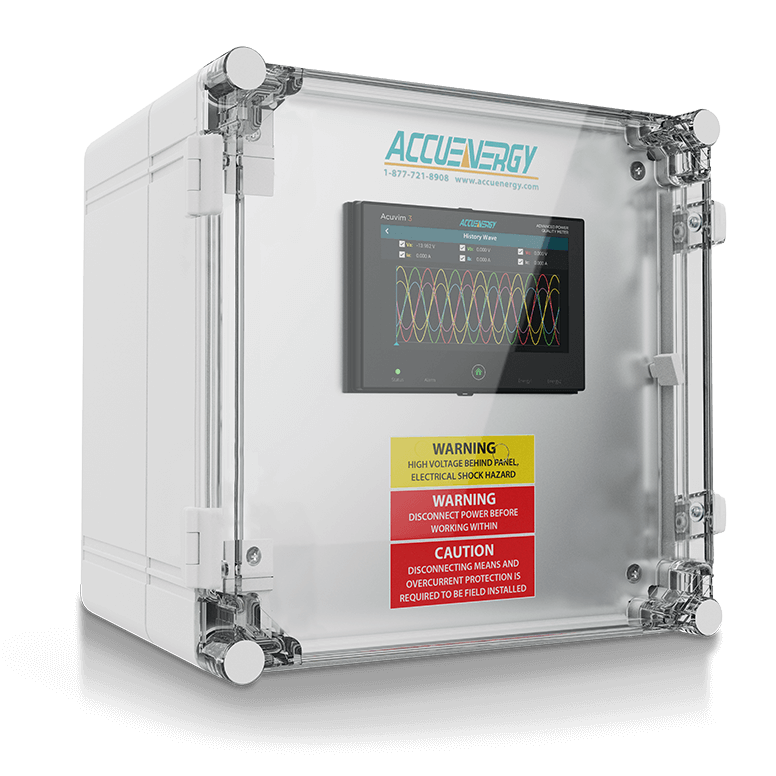

NEMA 4X Rating
AcuPanel 9108X features NEMA 4X rated enclosure, offering superior protection against dust, water, and extreme weather conditions. This polycarbonate design makes it suitable for indoor and outdoor use, ensuring reliable operation in harsh environments.

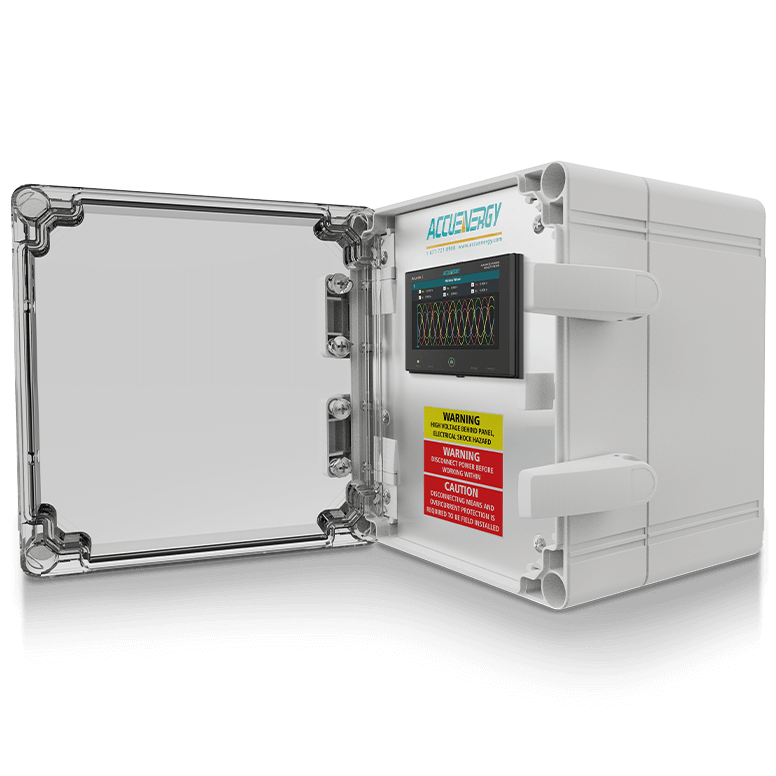

Secure Design
With lockable enclosures and metrology security seals, AcuPanel 9108X is engineered to prevent unauthorized access and tampering. These security measures protect sensitive metering equipment, ensuring data integrity and extending the lifespan of the devices.
AcuPanel 9108X Control Panel Builder
Accuenergy AcuPanel 9108X is a custom panel solution intended to match your project applicatoin. Brand your control panel solution to suit specific requirements. Contact us for details on custom control panel builds.
Terminal blocks
and fuse blocks
Pre-Wired Control Panel Models
AcuPanel 9108X | AcuPanel 9104 | AcuPanel 9104X | AcuPanel 9104X-DC | AcuPanel 9106X-DC | Custom Panel Shop | |
|---|---|---|---|---|---|---|
 |  |  |  |  |  | |
| Compatible Meters | Acuvim 3 | Acuvim II, Acuvim L | Acuvim II, Acuvim L | AcuDC 240 | AcuRev 2100 | Any Accuenergy Meter |
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Indoor Installations That Require Rugged Protection, But Not Weather Resistance | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Custom applications that require a unique panel configuration | ||
| Certifications | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X | NEMA 3* | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 1 - NEMA 4X |
| Material | Polycarbonate | Steel | Polycarbonate | Polycarbonate | Polycarbonate | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only | |||||
| Dust-Proof | ||||||
| Suitable for Indoor Use | ||||||
| Suitable for Outdoor Use | Polycarbonate Only | |||||
| Pre-Wired | ||||||
| Pre-Configured | ||||||
AcuPanel 9108X |
|---|
AcuPanel 9104 |
|---|
AcuPanel 9104X |
|---|
| |
| Compatible Meters | Acuvim II, Acuvim L |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Pre-Configured |
AcuPanel 9104X-DC |
|---|
| | |
| Compatible Meters | AcuDC 240 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Pre-Configured |
AcuPanel 9106X-DC |
|---|
| | |
| Compatible Meters | AcuRev 2100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Pre-Configured |
Custom Panel Shop |
|---|
| | |
| Compatible Meters | Any Accuenergy meter or other specified devices |
|---|---|
| Application | Custom applications that require a unique panel configuration |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 3 or NEMA 4X |
| Material | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | Polycarbonate Only |
| Pre-Wired | |
| Pre-Configured |
*AcuPanel 9104 is NEMA 3 by default. To increase the rating to NEMA 4, add the 96-IP66 protective cover.
AcuPanel 9108X Product Map
| 1 | Customize the panel with your full-color company logo displayed on the front cover. | 4 | NEMA 4X rated polycarbonate enclosure, suitable for indoor and outdoor uses. |
| 2 | Create custom warning labels designed for maximum visibility. | 5 | Factory-installed components, pre-wired and rigorously tested. |
| 3 | Acuvim 3 advanced power quality meter with revenue-grade accuracy. | 6 | Include custom internal labels featuring wiring diagrams, instructions, safety notes, and other essential details. |
| 1 | Customize the panel with your full-color company logo displayed on the front cover. |
| 2 | Create custom warning labels designed for maximum visibility. |
| 3 | Acuvim 3 advanced power quality meter with revenue-grade accuracy. |
| 4 | NEMA 4X rated polycarbonate enclosure, suitable for indoor and outdoor uses. |
| 5 | Factory-installed components, pre-wired and rigorously tested. |
| 6 | Include custom internal labels featuring wiring diagrams, instructions, safety notes, and other essential details. |
FAQ
What applications are suitable for the AcuPanel 9108X?
The AcuPanel 9108X is ideal for a variety of industries, including manufacturing, production, building automation, and OEMs. It is also suitable for critical infrastructure and facilities requiring precise power monitoring, energy management, or revenue-grade metering.
What does the NEMA 4X rating signify for the AcuPanel 9108X?
The NEMA 4X rating indicates that the AcuPanel 9108X is protected against dust, water, and extreme temperatures, making it suitable for both indoor and outdoor use, even in harsh environmental conditions.
What security measures does the AcuPanel 9108X offer?
The AcuPanel 9108X includes lockable enclosures and metrology security seals to prevent unauthorized access and tampering. These features ensure the integrity of the metering equipment and protect critical data.
Is the AcuPanel 9108X suitable for billing applications?
Yes, the built-in Acuvim 3 advanced power quality analyzer offers revenue-grade accuracy, compliant with IEC 62053-22 Class 0.1S and ANSI C12.20 Class 0.1 standards. This makes AcuPanel 9108X an excellent choice for tenant billing, energy consumption tracking, and cost allocation.
Which power quality parameters can the AcuPanel 9108X monitor?
The AcuPanel 9108X measures various power quality metrics, including harmonic distortion, flickers, transients, and other key parameters, helping users to identify issues in the power system, optimize system performance and minimize downtime.
What design elements make the AcuPanel 9108X easy to install?
The AcuPanel 9108X comes factory-assembled, pre-wired, and rigorously tested according to the industry standards, reducing the risk of wiring errors. It features colour-coded and clearly labeled components for simplified integration and maintenance. The self-powered design further simplifies the installation process.
Is the AcuPanel 9108X UL certified?
Yes, the AcuPanel 9108X is UL 508A certified and UL Listed, ensuring compliance with the safety and quality standards for industrial control panels.
Select Additional Custom options
The Accuenergy logo is added by default to all panels. Switch it out for custom logos or branding.
Accuenergy Logo
The Accuenergy logo is visible on the outside
Custom Logo
Add custom branding, logos, or labels
No Logo
Outside logos and branding are removed
Select Meter
Accuenergy meters conveniently mount in AcuPanel enclosures for an all-in-one metering solution.
Acuvim II
Multifunction, revenue-grade power and energy meter
Acuvim-L
Power and energy meter with Modbus-RTU/PROFIBUS
Select Warning Label Options
By default, a warning label is applied to the outside of the enclosure.
Warning Label
The Accuenergy logo is visible on the outside
None
Select a Power Supply Option for the Meter
Choose a power supply option for the meter that matches the service under measurement.
P1
Power Supply: 100-415Vac, 100-300Vdc
P2
Power Supply: 20-60Vdc
P3
Power Supply: 480Vac
P4
Power Supply: 600Vac
Select a Current Input Option
Available CT options vary by meter. Select a option that matches the service you wish to measure.
5A
5A standard industrial output current transformer
mA
mA output current transformer
RCT
Rogowski coil current transformer
333mV
333mV output current transformer
Select Additional Accessories
Select up to three devices to add to the panel. Note a second power supply is typically required to power additional accessories.
Cellular Modem
Add cellular connectivity to meters or other devices
Data Acquisition Server & Gateway
Data acquisition server and gateway for data aggregation
Mesh Communications
Wireless mesh network for Modbus-RTU devices
Customer-Specified Controller
Industrial controllers with programmable outputs
None
