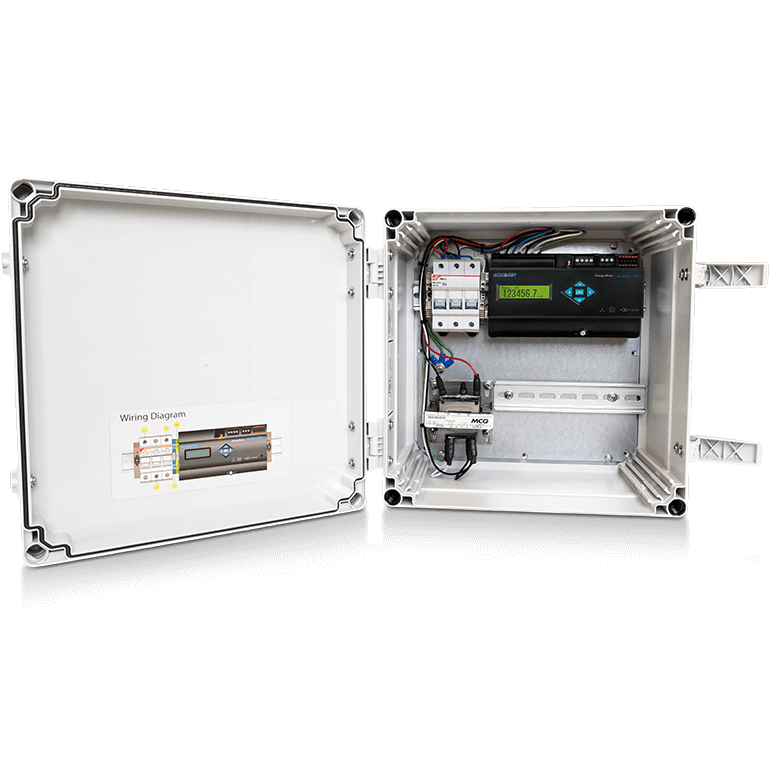

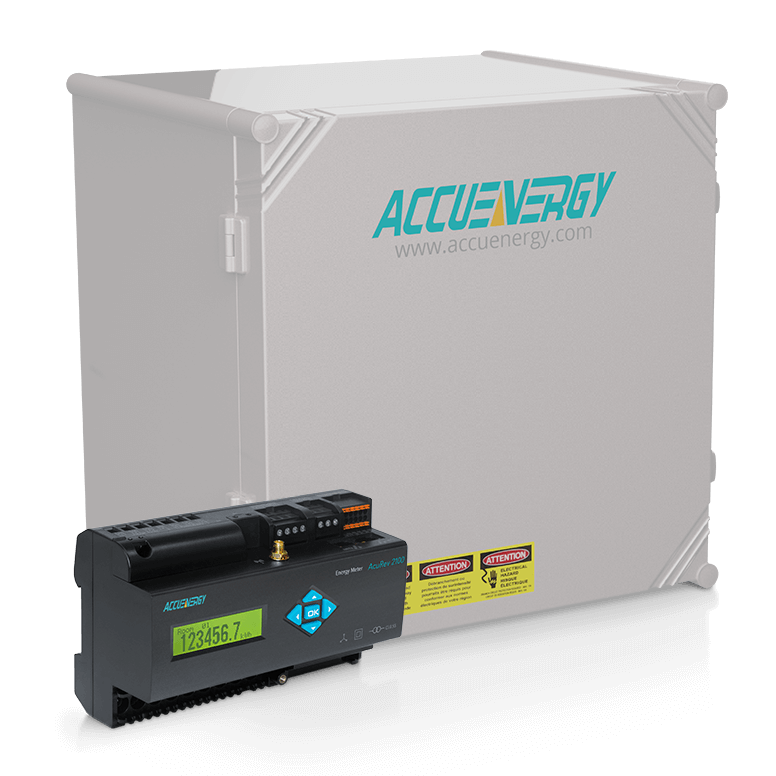

PRE-WIRED MULTI-CIRCUIT SUBMETER CONTROL PANEL
Housed in a durable NEMA 4X-rated polycarbonate enclosure, the AcuPanel 9106X combines the ease of pre-configuration with the advanced multi-circuit functionality of the AcuRev 2100 meter. Engineered for high-density load applications, it delivers revenue-grade multi-point metering and power quality analysis capabilities, making it ideal for commercial, industrial, and residential facilities. Rigorously quality-tested in factory and built to endure harsh environmental conditions, the AcuPanel 9106X is a reliable choice for OEM or retrofit projects demanding robust and easy-to-deploy solutions.
- Multi-circuit metering with AcuRev 2100.
- Measures 18 single-phase or 6 (or 9) polyphase circuits with revenue-grade accuracy.
- ANSI C12.20 0.5 class & IEC 62053-22 class 0.5s certified.
- NEMA 4X polycarbonate enclosure supports indoor and outdoor use.
- Pre-wired and factory assembled for easy installation.
- Quality-tested to ensure long-term reliability.
- Secure design with panel lock and tamper-proof metrology seals.
- Self-powered design requires no external power source, ideal for OEM applications.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF |
Custom Branding
Businesses can personalize the AcuPanel 9106X by incorporating their logos, placards, and other design elements, ensuring the panel not only meets functional requirements but also aligns with corporate branding, delivering a polished and professional appearance.
Secure Design
AcuPanel 9106X is designed with lockable enclosures and metrology security seals to prevent unauthorized access and tampering. These robust security features safeguard sensitive metering equipment, preserving data integrity and extending the lifespan of the devices.
Multi-Circuit Metering
The built-in AcuRev 2100 offers ANSI C12.20 class 0.5 & IEC 62053-22 class 0.5s certified revenue-grade monitoring and power quality analysis for commercial, industrial, and residential facilities. It measures 18 single-phase or 6 (or 9) polyphase circuits simultaneously, ideal for multi-tenant metering applications.

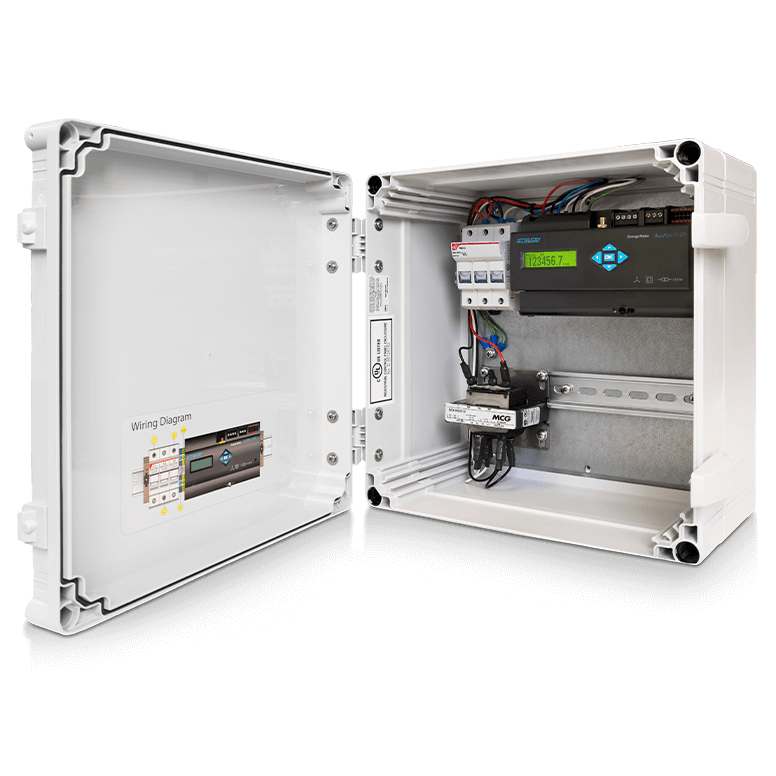

Pre-Wired & Tested
Factory-assembled with all components pre-wired and fully tested, the AcuPanel 9106X eliminates the need for complex on-site wiring. This streamlined approach reduces installation time, minimizes the risk of errors, and ensures the panel delivers optimal performance immediately upon installation, offering a seamless setup experience.
NEMA 4X Rating
The AcuPanel 9106X is equipped with a NEMA 4X rated enclosure, providing excellent protection against dust, water, and harsh weather conditions. Its durable polycarbonate construction ensures reliable performance, making it ideal for both indoor and outdoor use in challenging environments.
UL Certified
The AcuPanel 9106X meets highest safety and quality standards with UL 508A and UL Listed certification. These certifications guarantee reliable protection against electrical hazards, simplifying the inspection and approval process.

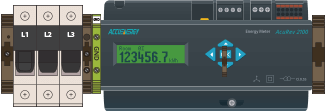

AcuPanel 9106X Panel Builder
Accuenergy AcuPanel 9106X is a custom panel solution intended to match your project applicatoin. Brand your control panel solution to suit specific requirements. Contact us for details on custom control panel builds.
P1
Current
Transformer
Pre-Wired Control Panel Models
AcuPanel 9106X | AcuPanel 9104X | AcuPanel 9104X-DC | AcuPanel 9108X | Custom Panels | |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Compatible Meters | Acurev 2100 | Acuvim II, Acuvim L | AcuDC 240 | Acuvim 3 | Any Accuenergy Meter |
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Custom applications that require a unique panel configuration | |||
| Certifications | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 1 - NEMA 4X |
| Material | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only | ||||
| Dust-Proof | |||||
| Suitable for Indoor Use | |||||
| Suitable for Outdoor Use | Polycarbonate Only | ||||
| Pre-Wired | |||||
AcuPanel 9106X |
|---|
| | |
| Compatible Meters | AcuRev 2100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9104X |
|---|
| |
| Compatible Meters | Acuvim II, Acuvim L |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9104X-DC |
|---|
| | |
| Compatible Meters | AcuDC 240 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9108X |
|---|
Custom Panel Shop |
|---|
| | |
| Compatible Meters | Any Accuenergy meter or other specified devices |
|---|---|
| Application | Custom applications that require a unique panel configuration |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 3 or NEMA 4X |
| Material | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | Polycarbonate Only |
| Pre-Wired |
AcuPanel 9106X Product Map
| 1 | Showcase your company brand: Add custom, full color logos to the front of any panel | 4 | Specify a customized interior layout to make room for field-installed devices or wiring |
| 2 | Add custom safety or warning labels to the front of the panel for guaranteed visibility | 5 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs |
| 1 | Showcase your company brand: Add custom, full color logos to the front of any panel |
| 2 | Add custom safety or warning labels to the front of the panel for guaranteed visibility |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs |
| 4 | Specify a customized interior layout to make room for field-installed devices or wiring |
| 5 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
Accessories, Components, & Integrations
AcuCloud
AcuCloud is a powerful cloud-based platform offering seamless access to data from Accuenergy and other power meters. It simplifies energy data management with quick data retrieval, detailed analysis, and effortless integration for importing and exporting data to external systems.
AC Current Transformers
Engineered and manufactured in-house, our high-accuracy revenue-grade split-core and solid-core (AcuCT S77) current transformers deliver industry-leading precision and exceptional reliability for diverse applications.
Test Lead & Voltage Clip
Testing leads are equipped with dual banana connectors to ensure secure connections. The voltage clip, housed in EPR insulation, meets CAT IV safety standards and includes a durable alligator clamp for dependable installation.
Extra SnapOn Connectors
Designed with Snap-On CT connector heads, these easily attach to the AcuRev 2100 submeter. Additional connectors can be ordered to equip more current transformers or kept as spares for replacements.
FAQ
What is AcuPanel 9106X designed for?
The AcuPanel 9106X is built for multi-circuit metering, providing an efficient solution for multi-tenant buildings, industrial operations, and large commercial properties that require monitoring of various circuits for different sections or departments.
Is AcuPanel 9106X suitable for outdoor use?
The AcuPanel 9106X features a NEMA 4X rated enclosure, offering superior protection against dust, water, and harsh environmental conditions, making it well-suited for both indoor and outdoor applications.
How to expand the memory for the built-in AcuRev 2100?
The WEB2 modules provide up to 8GB of non-volatile memory for storing energy and power quality data.
Is the AcuPanel 9106X equipped with pre-drilled openings for conduit installation?
In order to accommodate additional CT leads, I/O wiring, and other communication modules that are built into the AcuRev 2100, the AcuPanel 9106X is NOT pre-drilled and should be drilled on-site by an installer to ensure conduit connections are properly sized and in the correct locations.
Does the AcuPanel 9106X support outdoor installation in direct sunlight?
The AcuPanel 9106X can be installed in direct sunlight. However, it is important to note the operating temperature of the AcuRev 2100 multi-circuit submeter, and other devices installed inside the panel. The temperature may rise beyond the operating temperature of sensitive equipment after an extended period of time under the sun. The operating temperature for AcuRev 2100 is -25°C to 70°C (-13°F to 158°F).
Select Additional Custom options
The Accuenergy logo is added by default to all panels. Switch it out for custom logos or branding.
Accuenergy Logo
The Accuenergy logo is visible on the outside
Custom Logo
Add custom branding, logos, or labels
No Logo
Outside logos and branding are removed
Select Meter
Accuenergy meters conveniently mount in AcuPanel enclosures for an all-in-one metering solution.
Acuvim II
Multifunction, revenue-grade power and energy meter
Acuvim-L
Power and energy meter with Modbus-RTU/PROFIBUS
Select Warning Label Options
By default, a warning label is applied to the outside of the enclosure.
Warning Label
The Accuenergy logo is visible on the outside
None
Select a Power Supply Option for the Meter
Choose a power supply option for the meter that matches the service under measurement.
P1
Power Supply: 100-415Vac, 100-300Vdc
P3
Power Supply: 480Vac
P4
Power Supply: 600Vac
Select a Current Input Option
Available CT options vary by meter. Select a option that matches the service you wish to measure.
mA
80mA and 100mA Current Transformer
RCT
Rogowski Coil Flexible Current Transformer
mV
333mV Output Current Transformer
Select Additional Accessories
Select up to three devices to add to the panel. Note a second power supply is typically required to power additional accessories.
Cellular Modem
Add cellular connectivity to meters or other devices
Data Acquisition Server & Gateway
Data acquisition server and gateway for data aggregation
Mesh Communications
Wireless mesh network for Modbus-RTU devices
Customer-Specified Controller
Industrial controllers with programmable outputs
None
Your Panel is Built!
Based on your selections, here is a helpful guide to your panel configuration that can be used to get a quote from our team. Keep in mind that additional options are available. Please contact us to learn more about our panel building process.
Your Selections:
1. Meter
2. Power Supply
3. Warning Label
4. Additional Custom Options
5. Current Input
Please contact us and we can further assist you.
