PRE-WIRED ENERGY METERING CONTROL PANEL

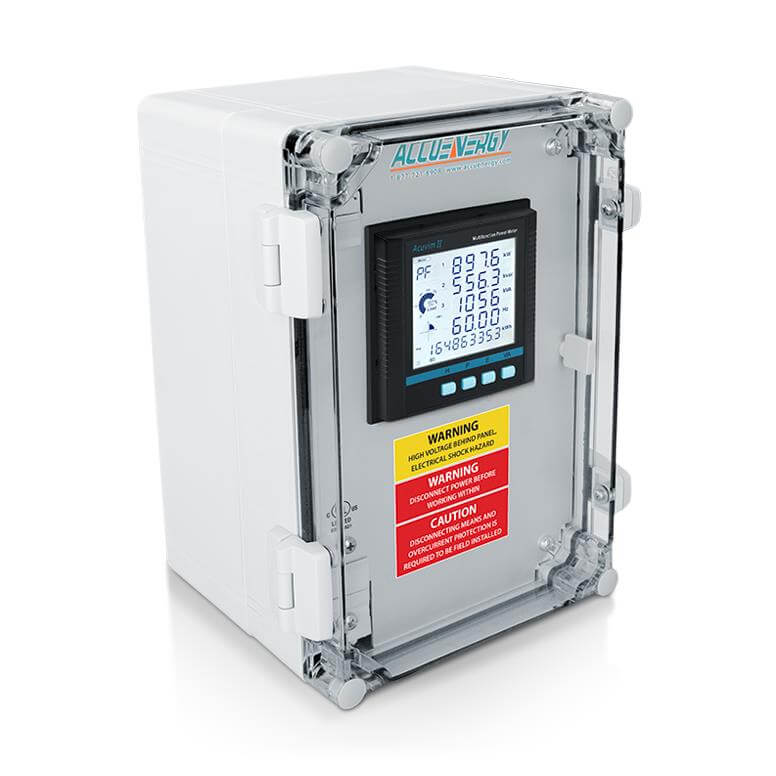

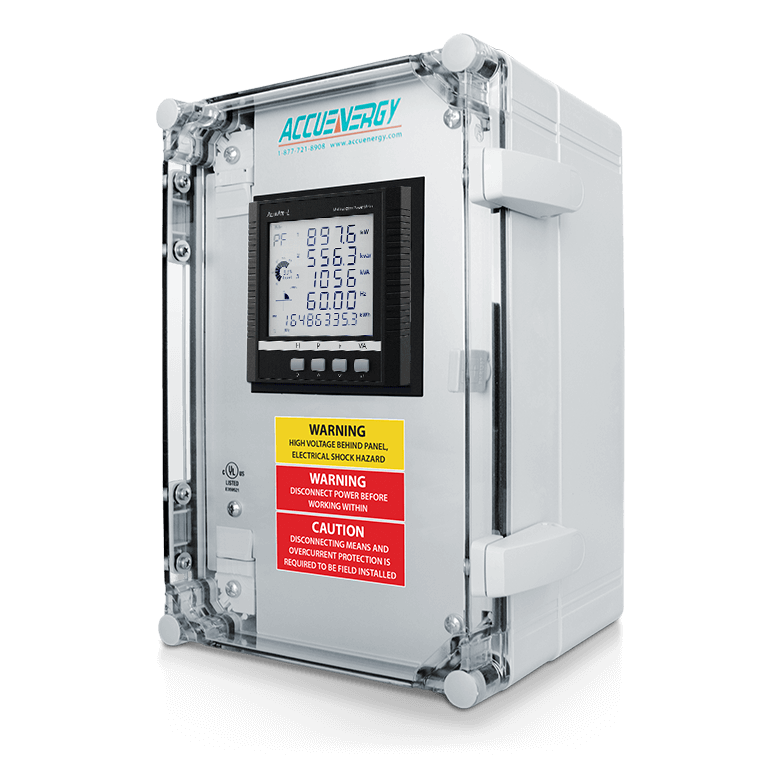

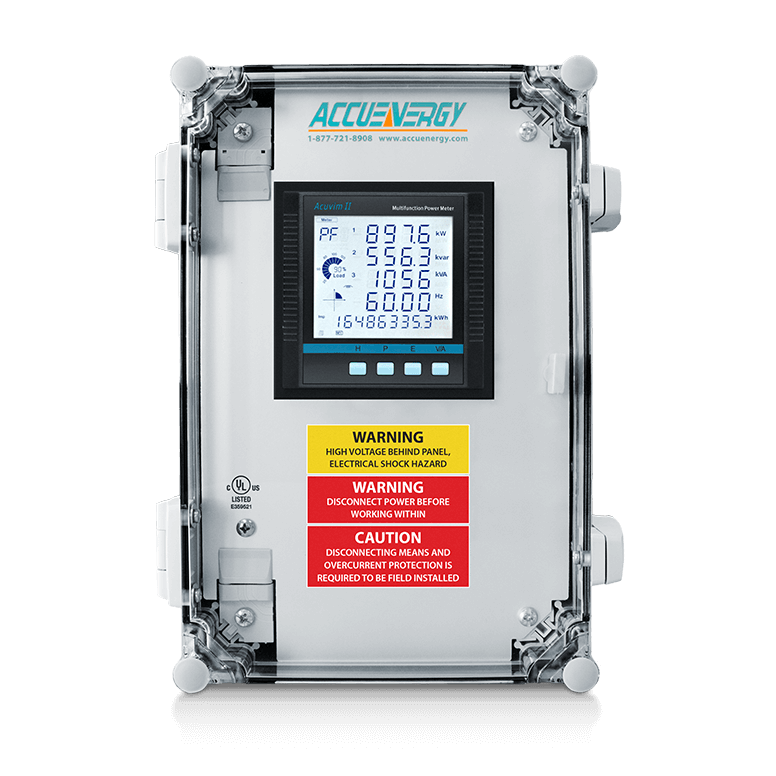

The AcuPanel 9104X is a pre-wired power and energy industrial control panel engineered for seamless integration into a wide range of applications. It is available in multiple standard configurations featuring the Acuvim II or Acuvim L power & energy meters. The factory pre-wiring streamlines setup and minimizes the risk of wiring errors that could compromise data accuracy. Each AcuPanel 9104X undergoes rigorous quality testing to deliver reliable performance for years to come.
- Acuvim II Series or Acuvim L Series meter options.
- Available in NEMA 4X-rated polycarbonate panel for outdoor conditions.
- Control panel meets rigorous UL/cUL standards.
- Required components are pre-installed, pre-wired, and clearly labeled.
- Plug-and-play design saves valuable installation time.
- Wiring and installation errors are virtually eliminated.
- Self-powered panel does not require a separate power supply.
- Protective opaque meter cover available for the AcuPanel 9104X to prevent fading from sunlight exposure.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF |
Pre-Cut Enclosure
The AcuPanel 9104X is designed with two pre-drilled, pluggable holes located at the bottom of the enclosure. These allow wiring to be easily routed to the circuit blocks, eliminating the need for any additional enclosure modifications and ensuring a smooth installation process.
Secure Solution
Lockable panel enclosures deliver superior protection against unauthorized tampering. They safeguard the enclosed metering equipment to maintain data integrity while extending the lifespan of the devices.
Revenue Grade Precision
The AcuPanel 9104X comes equipped with either the Acuvim II or Acuvim L energy and power meter, delivering revenue-grade accuracy. The Acuvim II complies with ANSI C12.20 Class 0.1 and IEC 62053-22 Class 0.1s standards, while the Acuvim L meets ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2s standards. This high level of precision makes it ideal for tenant billing and consumption tracking.

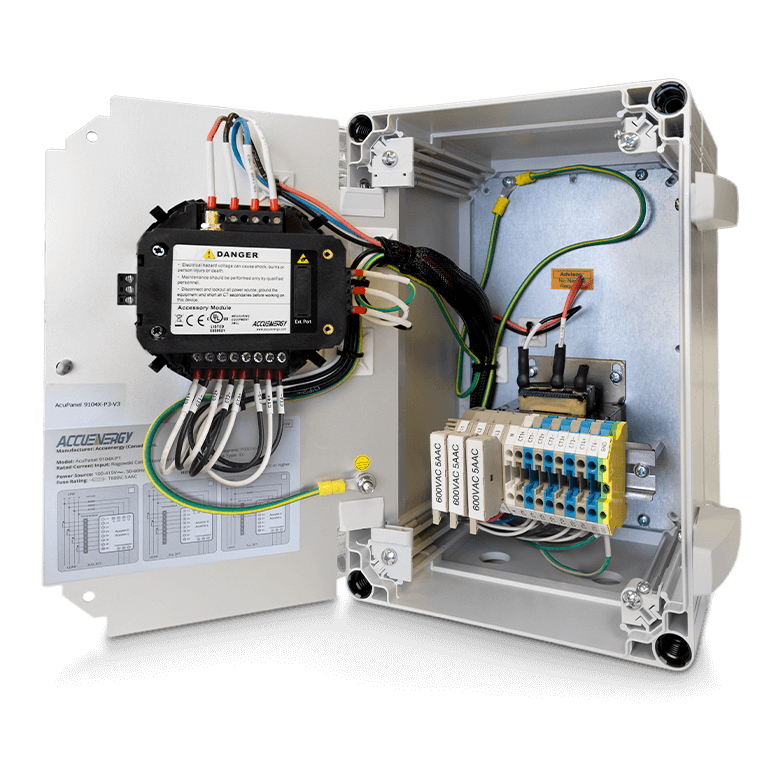

Pre-Wired Components
Featuring factory-assembled components with colour-coded labels, the AcuPanel 9104X includes shorting blocks for CT inputs and fused terminal blocks for voltage connections. Each assembly is rigorously tested and clearly labelled to simplify installation, prevent wiring errors, and ensure accurate data.
NEMA-Rated Enclosure
Available with a NEMA 4X-rated polycarbonate enclosure for both indoor and outdoor uses, offering robust protection against dust, water, and extreme weather, ensuring reliable operation in harsh environments.
UL Certified
The AcuPanel 9104X is UL 508A certified and UL Listed, meeting the highest industry safety and quality standards. These certifications ensure the panel provides reliable protection against electrical hazards while facilitating regulatory compliance during inspections and approvals.
AcuPanel 9104X Control Panel Builder
Accuenergy makes it easy to configure a custom panel solution to match your project. From specialized components to unique panel layouts, we can create a custom panel solution to suit any requirement. Contact us for details on custom panel builds.
Acuvim II
Warning Labels
Cellular
Modem
Customer
Specified
Controller
Data Acquisition
Server & Gateway
P1
2nd Power
Supply
Mesh
Communications
Transformer
Terminal blocks
and fuse blocks
Current
Transformer
Pre-Wired Control Panel Models
AcuPanel 9104X | AcuPanel 9104X-DC | AcuPanel 9108X | AcuPanel 9106X | Custom Panels | |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Compatible Meters | Acuvim II, Acuvim L | AcuDC 240 | Acuvim 3 | AcuRev 2100 | Any Accuenergy Meter |
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Custom applications that require a unique panel configuration | |||
| Certifications | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 1 - NEMA 4X |
| Material | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only | ||||
| Dust-Proof | |||||
| Suitable for Indoor Use | |||||
| Suitable for Outdoor Use | Polycarbonate Only | ||||
| Pre-Wired | |||||
AcuPanel 9104X |
|---|
| | |
| Compatible Meters | Acuvim II, Acuvim L |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9104X-DC |
|---|
| | |
| Compatible Meters | AcuDC 240 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9108X |
|---|
AcuPanel 9106X |
|---|
| | |
| Compatible Meters | AcuRev 2100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
Custom Panel Shop |
|---|
| | |
| Compatible Meters | Any Accuenergy meter or other specified devices |
|---|---|
| Application | Custom applications that require a unique panel configuration |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 3 or NEMA 4X |
| Material | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | Polycarbonate Only |
| Pre-Wired |
AcuPanel 9104X Product Map
| 1 | Showcase your company brand: Add your full color logo to the front of any panel | 4 | Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure |
| 2 | Add custom safety or warning labels to the panel for guaranteed visibility | 5 | For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs | 6 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
| 1 | Showcase your company brand: Add your full color logo to the front of any panel |
| 2 | Add custom safety or warning labels to the panel for guaranteed visibility |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs |
| 4 | Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure |
| 5 | For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid |
| 6 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
Accessories, Components, & Integrations
AcuCloud
A premium cloud-based platform that allows seamless access to data from Accuenergy and other power meters. Featuring advanced tools, it streamlines energy data management by facilitating fast data retrieval, in-depth analysis, and smooth integration with external systems for efficient data import and export.
AcuPanel 9104X Opaque Cover
The opaque cover is designed to shield the meter screen from prolonged exposure to direct sunlight, protecting it from potential damage. By preventing issues such as fading, discoloration, and deterioration of the LCD display, the cover helps maintain the screen's clarity and ensures reliable functionality over an extended period, even in harsh environmental conditions.
FAQ
Do the AcuPanel 9104X enclosures come pre-drilled for conduit?
AcuPanel models 9104/9104X are pre-drilled at the factory with two 11.0mm (0.44") holes to accommodate conduit fittings. The holes are typically drilled into the bottom of the enclosure and are pluggable. Contact Accuenergy if other pre-drilled holes are required.
Does the AcuPanel come with mounting hardware?
Yes, all AcuPanel models are supplied with durable mounting feet for easy installation.
Can the AcuPanel 9104X be installed in direct sunlight?
The AcuPanel can be installed in direct sunlight, however it is important to note the operating temperature for the meter and other devices installed inside the panel which may get hot after an extended period of time in the sun. Do not exceed the operating temperature of your equipment. The AcuPanel 9104X can also be ordered with an opaque (solid) cover for additional protection against direct sunlight/UV which will help increase the lifespan of the meter's display.
Select Additional Custom options
The Accuenergy logo is added by default to all panels. Switch it out for custom logos or branding.
Accuenergy Logo
The Accuenergy logo is visible on the outside
Custom Logo
Add custom branding, logos, or labels
No Logo
Outside logos and branding are removed
Select Meter
Accuenergy meters conveniently mount in AcuPanel enclosures for an all-in-one metering solution.
Acuvim II
Multifunction, revenue-grade power and energy meter
Acuvim-L
Power and energy meter with Modbus-RTU/PROFIBUS
Select Warning Label Options
By default, a warning label is applied to the outside of the enclosure.
Warning Label
The Accuenergy logo is visible on the outside
None
Select a Power Supply Option for the Meter
Choose a power supply option for the meter that matches the service under measurement.
P1
Power Supply: 100-415Vac, 100-300Vdc
P2
Power Supply: 20-60Vdc
P3
Power Supply: 480Vac
P4
Power Supply: 600Vac
Select a Current Input Option
Available CT options vary by meter. Select a option that matches the service you wish to measure.
5A
5A standard industrial output current transformer
mA
mA output current transformer
RCT
Rogowski coil current transformer
333mV
333mV output current transformer
Select Additional Accessories
Select up to three devices to add to the panel. Note a second power supply is typically required to power additional accessories.
Cellular Modem
Add cellular connectivity to meters or other devices
Data Acquisition Server & Gateway
Data acquisition server and gateway for data aggregation
Mesh Communications
Wireless mesh network for Modbus-RTU devices
Customer-Specified Controller
Industrial controllers with programmable outputs
None
Your Panel is Built!
Based on your selections, here is a helpful guide to your panel configuration that can be used to get a quote from our team. Keep in mind that additional options are available. Please contact us to learn more about our panel building process.
Your Selections:
1. Meter
2. Power Supply
3. Additional Accessories
4. Warning Label
5. Additional Custom Options
6. Current Input
Please contact us and we can further assist you.
