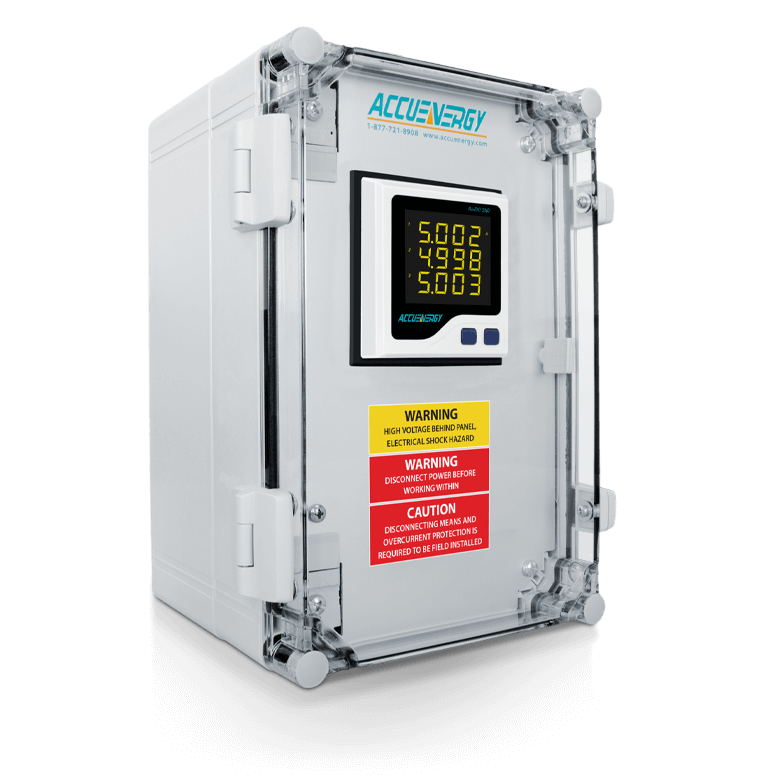

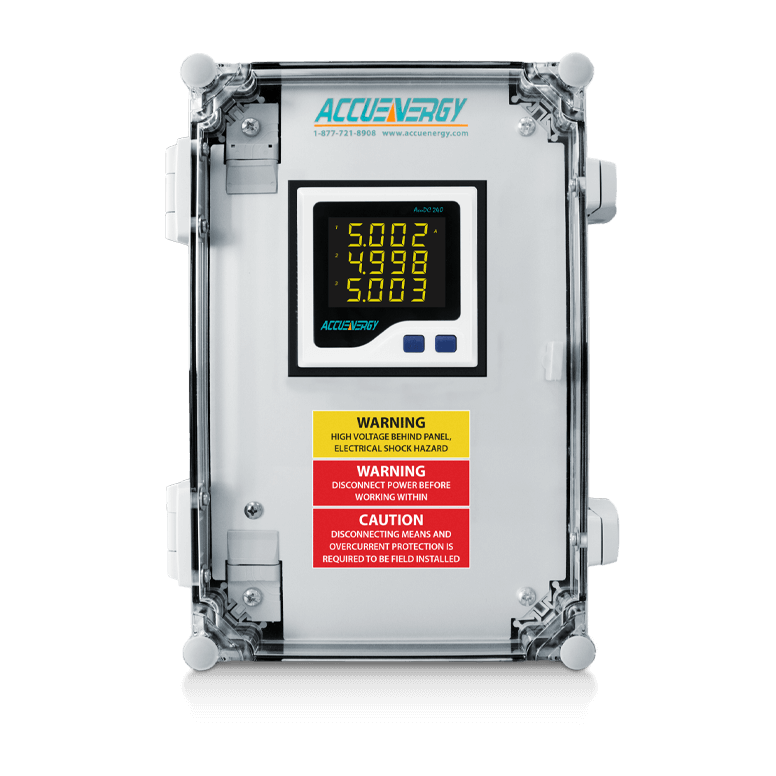

PRE-WIRED DC METERING CONTROL PANEL
Equipped with the AcuDC 240, the AcuPanel 9104X-DC is a pre-wired DC power panel meter designed to monitor and control DC systems by measuring key parameters. Housed in a durable NEMA 4X polycarbonate enclosure, it is built to provide protection against dust, water, and other harsh environments, making it suitable for both indoor and outdoor use. The factory wiring simplifies installation and reduces the risk of wiring errors. Each AcuPanel 9104X-DC is quality-tested to ensure dependable, long-term performance.
- Built-in AcuDC 240 DC power & energy meter.
- 0.2% accuracy on voltage and current; 0.5% on power and energy.
- Durable polycarbonate enclosure with NEMA 4X rating for indoor & outdoor use.
- Pre-wired & factory-assembled components for quick installation, no extra testing required.
- Colour-coded and clearly labeled.
- Lockable housing provides additional protection against unauthorized access.
- Pre-cut entry points for easy cable routing.
- Simple grounding included within the enclosure for simplified setup.
- Eliminates the need for a control transformer.
- UL Listed and UL 508A certified for safe and dependable operation.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF |
Custom Branding
AcuPanel 9104X-DC offers businesses customizations opportunities, allowing the integration of logos, placards, and other design elements. This ensures the panel meets operational needs while reflecting the corporate branding, providing a professional and cohesive appearance.
Secure Design
Featuring a lockable enclosure, the AcuPanel 9104X-DC is designed to protect against unauthorized access and tampering. These security measures ensure the safety of sensitive metering equipment, maintain data integrity, and enhance the lifespan of the devices.
Precise DC Metering
The built-in AcuDC 240 DC power & energy meter offers 0.2% accuracy on voltage and current, and 0.5% on power and energy. It is ideal for renewable energy applications, transportation systems, telecommunications, power distribution systems, EV charging stations, as well as other billing applications.

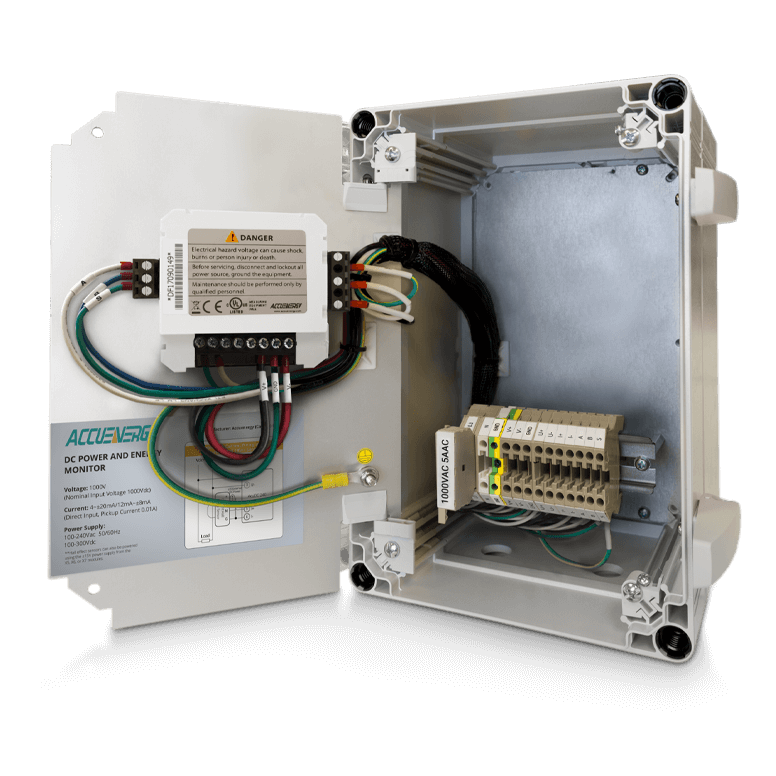

Pre-Wired & Tested
With all of its components pre-wired and quality-tested, the AcuPanel 9104X-DC eliminates the need for complex on-site wiring, minimizes the risk of errors, and ensures the panel delivers optimal performance immediately upon installation, offering a smooth and error-free setup experience.
NEMA 4X Rating
The AcuPanel 9104X-DC features a NEMA 4X-rated enclosure that offers robust protection against dust, water, and extreme weather. The durable polycarbonate construction ensures reliable performance, making it well-suited for indoor and outdoor use in challenging environmental conditions.
Designed for Renewables
Designed for renewable energy applications such as DC-coupled BESS and renewable production monitoring, AcuPanel 9104X-DC is compatible with Accuenergy's high-accuracy HAB DC current sensors, HAK Hall Effect sensors, and HV2 DC voltage sensor. It offers comprehensive insights through accumulated totals and detailed historical data logs.
AcuPanel 9104X-DC Panel Builder
Accuenergy makes it easy to configure a custom panel solution to match your project. From specialized components to unique panel layouts, we can create a custom panel solution to suit any requirement. Contact us for details on custom panel builds.
AcuDC 240
Cellular
Modem
Customer
Specified
Controller
Data Acquisition
Server & Gateway
P1
2nd Power
Supply
Mesh
Communications
Terminal blocks
and fuse blocks
Current
Transformer
Pre-Wired Control Panel Models
AcuPanel 9104X-DC | AcuPanel 9104X | AcuPanel 9108X | AcuPanel 9106X | Custom Panel Shop | |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Compatible Meters | Acuvim 240 | Acuvim II, Acuvim L | Acuvim 3 | AcuRev 2100 | Any Accuenergy Meter |
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Custom applications that require a unique panel configuration | |||
| Certifications | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 1 - NEMA 4X |
| Material | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only | ||||
| Dust-Proof | |||||
| Suitable for Indoor Use | |||||
| Suitable for Outdoor Use | Polycarbonate Only | ||||
| Pre-Wired | |||||
AcuPanel 9104X-DC |
|---|
| | |
| Compatible Meters | AcuDC 240 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9104X |
|---|
| |
| Compatible Meters | Acuvim II, Acuvim L |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
AcuPanel 9108X |
|---|
AcuPanel 9106X |
|---|
| | |
| Compatible Meters | AcuRev 2100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired |
Custom Panel Shop |
|---|
| | |
| Compatible Meters | Any Accuenergy meter or other specified devices |
|---|---|
| Application | Custom applications that require a unique panel configuration |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 3 or NEMA 4X |
| Material | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | Polycarbonate Only |
| Pre-Wired |

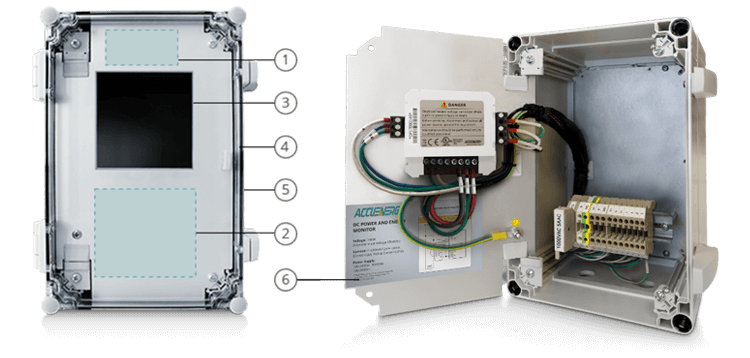

AcuPanel 9104X-DC Product Map
| 1 | Showcase your company brand: Add your full color logo to the front of any panel | 4 | Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure |
| 2 | Add custom safety or warning labels to the panel for guaranteed visibility | 5 | For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs | 6 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
| 1 | Showcase your company brand: Add your full color logo to the front of any panel |
| 2 | Add custom safety or warning labels to the panel for guaranteed visibility |
| 3 | Accommodate custom conduit connections for select meters by specifying dimensions and locations for cut-outs |
| 4 | Specify front cutout dimensions, add an opaque lid, or house multiple meters in a single enclosure |
| 5 | For protection against UV radiation or additional security, enclosures can be ordered with an opaque lid |
| 6 | Add custom labels to the inside of the panel that include wiring diagrams, instructions, safety notes, and more |
AcuPanel 9104X-DC Accessories
DC Current Transformers
Engineered for high accuracy, Accuenergy's line of DC sensors are industrial grade to provide consistent measurements in a wide range of environments. Choose from split-core DC sensors, Hall Effect sensors, or DC shunts.
Data Acquisition & Wireless Mesh
The AcuLink 810 is an advanced data acquisition server and gateway designed to collect and aggregate utility data from multiple meters and field sensors within a facility. AcuMesh enhances this functionality by enabling a Wireless Mesh Network for Modbus-RTU devices, providing an efficient and cost-effective solution for monitoring energy flow, industrial processes, HVAC systems, and other applications.
USB-to-RS485 Converter
This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from AcuDC 240 meters to other devices with a USB port.
Opaque Cover for AcuPanel 9104X-DC
Prolonged exposure to direct sunlight can cause the meter screen to fade, reducing readability over time. The opaque cover can effectively protect the LCD screen from the damages, ensuring the panel's long-term performance and reducing the need for maintenance.
FAQ
What applications are suitable for the AcuPanel 9104X-DC?
The AcuPanel 9104X-DC is ideal for a variety of industries, including manufacturing, production, building automation, and OEMs. It is also suitable for critical infrastructure and facilities requiring precise power monitoring, energy management, or revenue-grade metering.
Is the AcuPanel 9104X-DC suitable for billing purposes?
The built-in AcuDC 240 DC power and energy meter offers 0.2% accuracy on voltage and current, and 0.5% accuracy on power and energy. It is designed for revenue grade measurement and billing applications.
What does it mean for AcuPanel 9104X-DC to have NEMA 4X rating?
The NEMA 4x rated polycarbonate enclosure offers protection against dust, water, and extreme temperatures, as well as other harsh environmental conditions, making it suitable for both indoor and outdoor use.
How does AcuPanel 9104X-DC simplify installation?
Factory-installed, pre-wired, and quality-tested according to the highest industry standards, AcuPanel 9104X-DC minimizes the wiring errors and simplifies regulatory process. Its colour-coded and clearly labeled components ensure easy integration and maintenance, while the self-powered design further streamlines installation.
Can the AcuPanel 9104X-DC be installed in direct sunlight?
The AcuPanel 9104X-DC can be placed in areas with direct sunlight exposure. It is crucial to monitor the operating temperature of the meter and any devices inside the panel, as prolonged sun exposure may lead to increased heat. Always ensure your equipment remains within its specified temperature range.
Does Accuenergy offer custom branding for AcuPanel 9104X-DC?
Yes, the AcuPanel 9104X-DC offers custom branding options, allowing businesses to add logos, instructional placards, and other design elements directly to the panel, ensuring brand consistency and providing a clean, professional look.
Select Additional Custom options
The Accuenergy logo is added by default to all panels. Switch it out for custom logos or branding.
Accuenergy Logo
The Accuenergy logo is visible on the outside
Custom Logo
Add custom branding, logos, or labels
No Logo
Outside logos and branding are removed
Select Warning Label Options
By default, a warning label is applied to the outside of the enclosure.
Warning Label
The Accuenergy logo is visible on the outside
None
Select a Power Supply Option for the Meter
Choose a power supply option for the meter that matches the service under measurement.
P1
Power Supply: 100-415Vac, 100-300Vdc
P2
Power Supply: 20-60Vdc
P3
Power Supply: 480Vac
P4
Power Supply: 600Vac
Select a Current Input Option
Available CT options vary by meter. Select a option that matches the service you wish to measure.
A0
Direct wiring (0~±10A)
A1
DC Shunt (50~100mV)
A2
Current Hall Effect Sensor (4~20mA/12mA±8mA)
A3
Voltage Hall Effect Sensor (0~±5/0~±4V)
Select Additional Accessories
Select up to three devices to add to the panel. Note a second power supply is typically required to power additional accessories.
Cellular Modem
Add cellular connectivity to meters or other devices
Data Acquisition Server & Gateway
Data acquisition server and gateway for data aggregation
Mesh Communications
Wireless mesh network for Modbus-RTU devices
Customer-Specified Controller
Industrial controllers with programmable outputs
None
Your Panel is Built!
Based on your selections, here is a helpful guide to your panel configuration that can be used to get a quote from our team. Keep in mind that additional options are available. Please contact us to learn more about our panel building process.
Your Selections:
1. Meter
2. Power Supply
3. Additional Accessories
4. Warning Label
5. Additional Custom Options
6. Current Input
