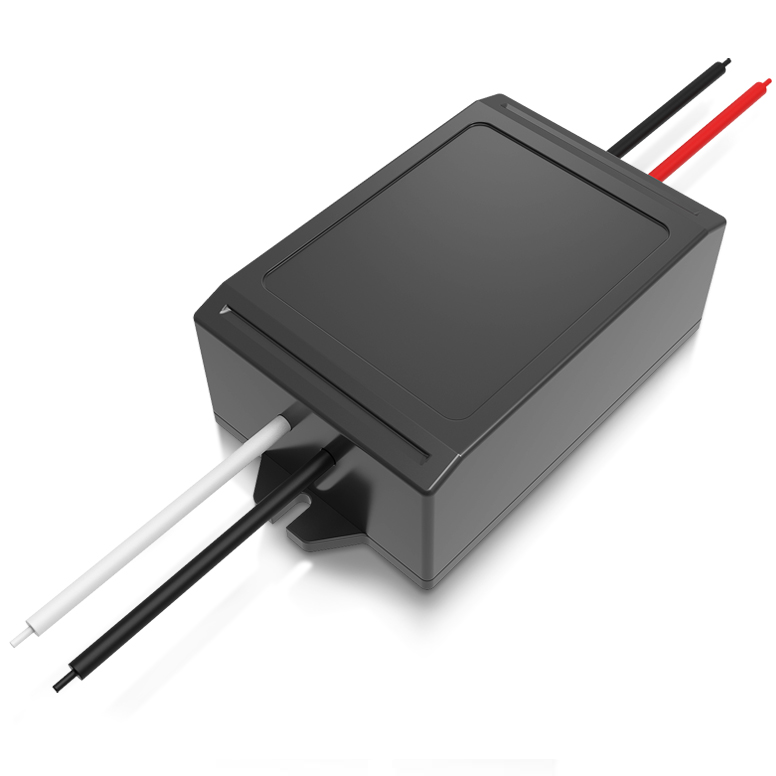

AcuCT C product images
AcuCT C - Left view

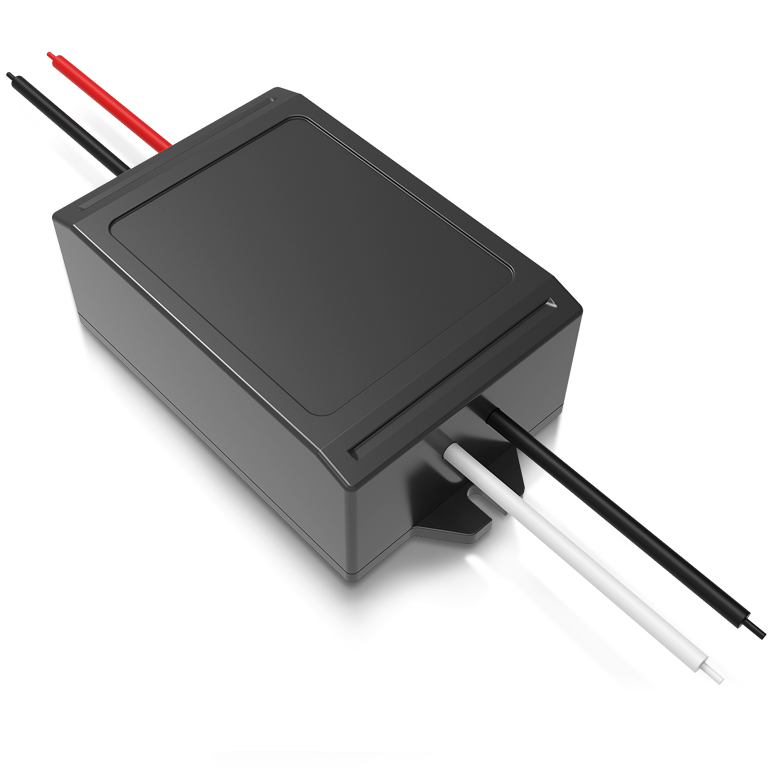

AcuCT C - Right view

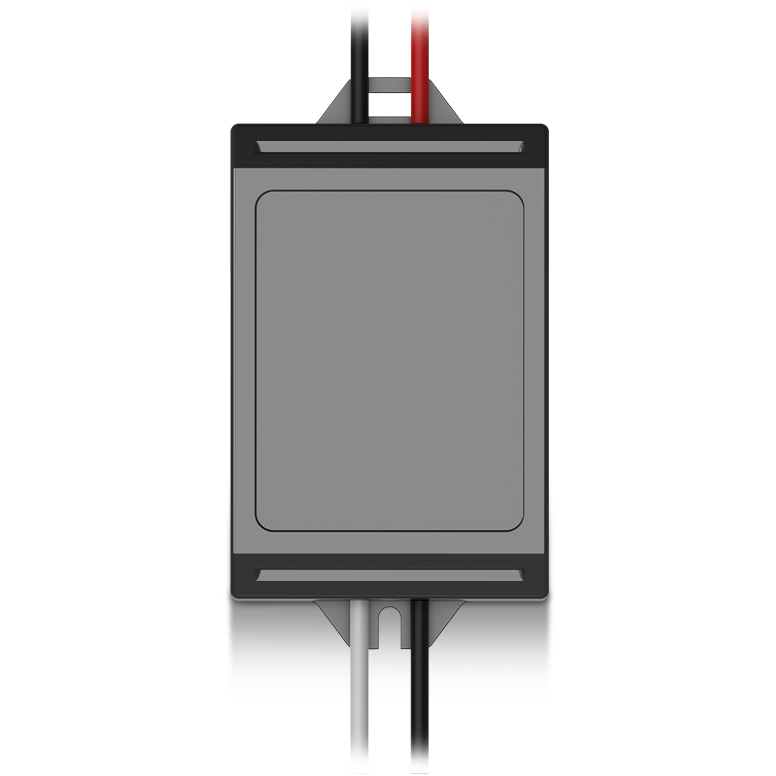

AcuCT C - Front view

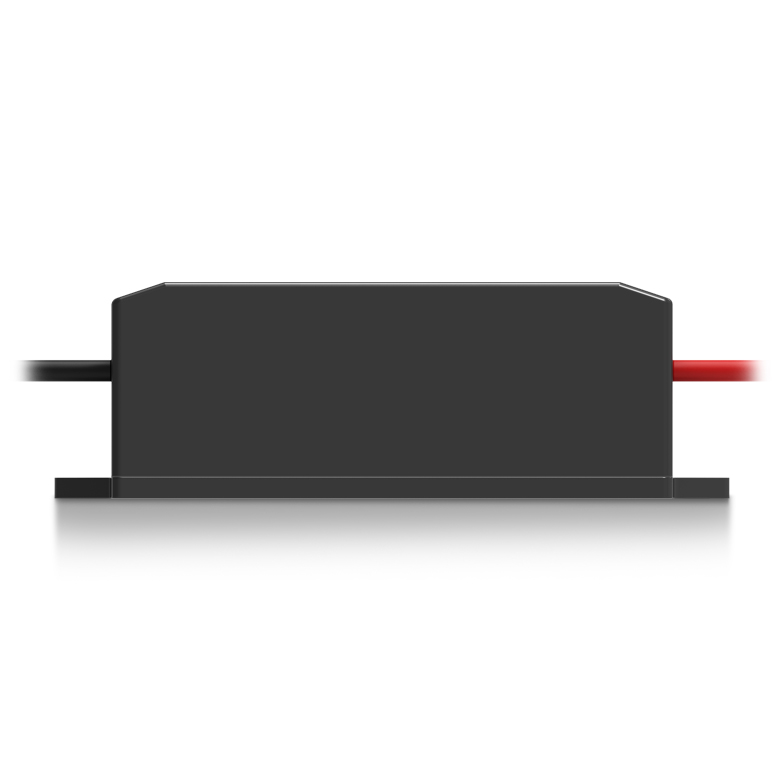

AcuCT C - Side view.
CE Mark
ROHS Compliant
Measurement Canada Approved

5A CT Converter

Converts a current transformer with a 5A primary current output to 80mA/100mA output. Measurement Canada Approved (Reference No. AE-2615) for rated systems higher than 400A and 800A. Intended to be used for revenue grade metering applications.

  • Measurement Canada Approved for rated systems higher than 400A or 800A
  • IEEE Std C57.13-2016 0.15 accuracy class
  • Input options: 5A
  • Two output options: 80mA, 100mA
  • Frequency: 50-60Hz
  • Ratio error < 0.5% Phase error < 8'

About AcuCT C

What is a Current Transformer Converter?

A CT converter is used alongside a current transformer to convert its output current to an electrical signal often used in revenue grade metering applications. The AcuCT C is a 5A to 80mA and 5A to 100mA converter. Paired with a 5A primary current CT, it converts the signal to either 80mA or 100mA secondary current.

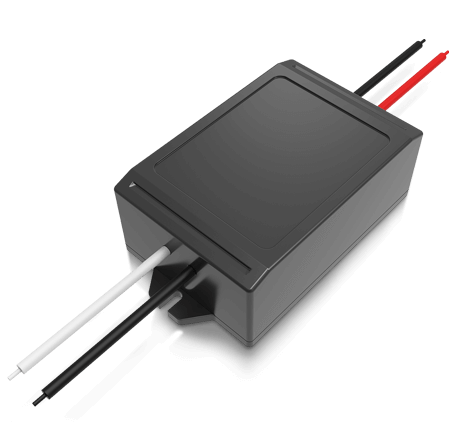

AcuCT C CT converter

AcuCT C Models

AcuCT C
Input Ratings
Output Ratings
Accuracy
Exterior Dimensions
Lead
Certification
AcuCT C current transformer converter 5A 80mA, 100mA IEEE Std C57.13-2016 0.15 2.11" x 3.10" x 1.20" 1 feet Measurement Canada Approved
AcuCT C
AcuCT C current transformer converter
Input Ratings
Output Ratings
Accuracy
Exterior Dimensions
Lead
Certification
5A 80mA, 100mA IEEE Std C57.13-2016 0.15 2.11" x 3.10" x 1.20" 1 feet Measurement Canada Approved
