Comparing Renewable Energy Solutions

Renewable energy is generated from natural resources that can be continuously replenished over time and can be sustained indefinitely. This differs from traditional fossil fuel, which will take millions of years to form from deceased plants and animal matter. Common renewable energy solutions include solar, wind, hydropower, geothermal, and biomass. They harness the power of sustainable natural resources to generate electricity and other forms of energy.

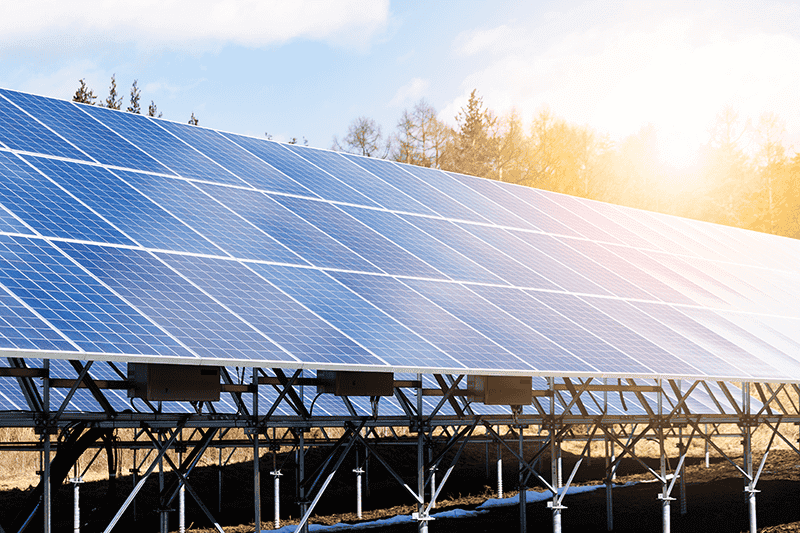

Solar Power

Solar power is the most abundant form of renewable energy. Earth’s upper atmosphere receives 174,000 terawatts of power from the Sun. Approximately 30% gets reflected back into space, while 70% reaches Earth’s surface, and that is 121,800 terawatts. In contrast, current world energy consumption is 18.39 terawatts, representing merely 0.15% of the total solar power reaching Earth’s surface. This highlights the vast untapped potential of solar energy.

The photovoltaic (PV) technology is at the forefront of the solar energy conversion. Electrons will be released when photons strike the photovoltaic solar panels, generating electric current. This electric current can then be harnessed and stored for various applications.

There were two major difficulties blocking the advancement of the PV industry: efficiency and price. In recent years, with the mass production of solar panels and technological advancements, the prices have dropped significantly, and the energy conversion efficiency to date has risen by up to 20%.

Photovoltaic solar panels are easy to maintain, have low operational costs, and produce minimal emissions. In 2022, the global solar photovoltaic capacity exceeded 1 terawatt, marking a significant milestone in the adoption of renewable energy.

The power generated by photovoltaic solar panels cannot be fed directly into the electric grid, as PV cells produce DC power. To integrate with the grid, the DC power must first be converted into AC power using inverters with submeters for measurement and verification. PV systems will often provision for excess DC power by storing it in batteries for future use.

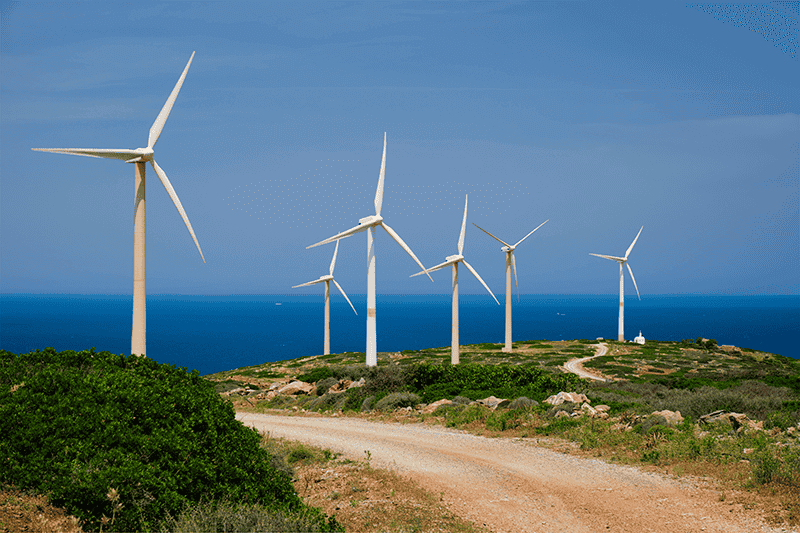

Wind Power

Wind power has been used for centuries in various forms, such as windmills for grinding grain or pumping water. Modern wind power technology focuses on generating electricity on a large-scale using wind turbines, with an average efficiency ranging from 35-45%.

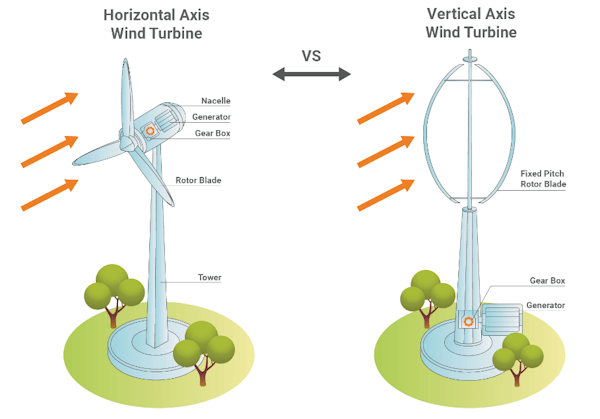

Wind turbines can be classified based on their axis of rotation, including horizontal (HAWT) and vertical axis wind turbines (VAWT).

HAWT has a higher efficiency and reliability when the rotor is aligned perpendicular to the wind direction and can be more difficult to maintain as the mechanical parts are high above the ground. VAWTs can handle turbulent wind conditions and are easier to maintain due to ground-level placement of mechanical parts but are generally less efficient than HAWTs.

Both types of wind turbines generate AC power and can be fed directly into the grid. Excessive energy can be converted to DC power to be stored in a battery energy storage system (BESS).

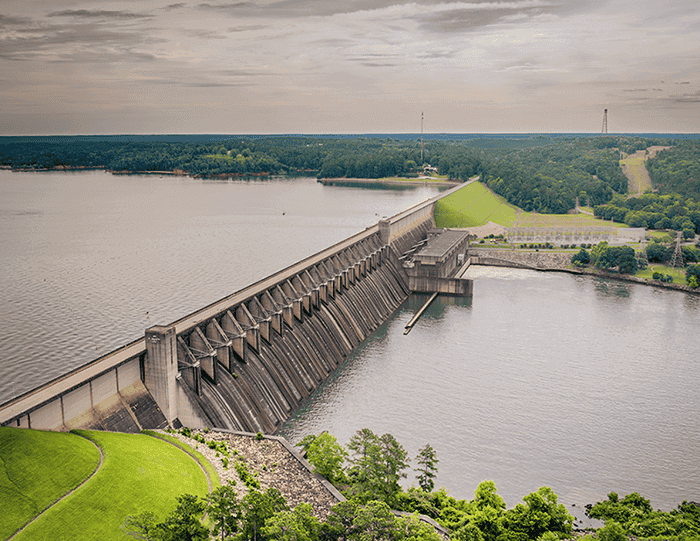

Hydropower

Hydropower plants convert the mechanical energy of water flow into electricity. These power plants are generally very efficient, with conversion efficiencies of 30-50%. Large-scale dams can achieve higher efficiencies by significantly enhance local ecosystems and communities, especially in regions with unstable precipitation patterns. Dams can not only provide a consistent and reliable power supply but also help adjust the water level in the area.

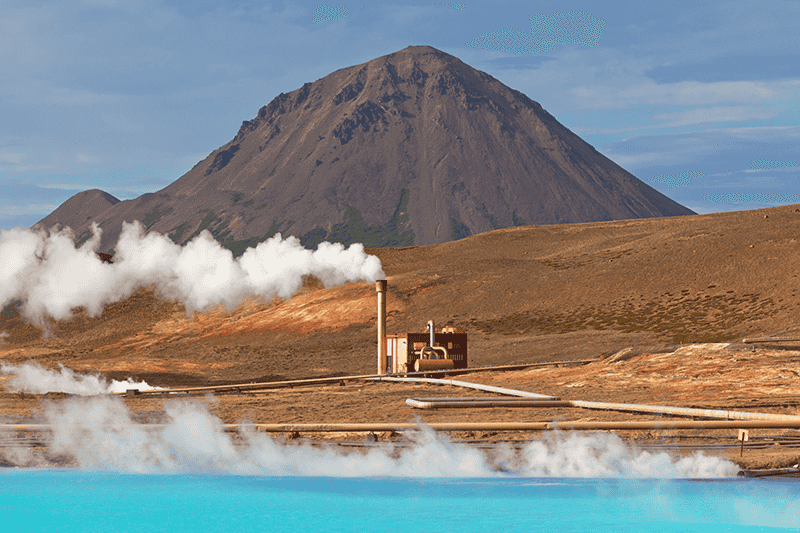

Geothermal Power

Geothermal power works by utilizing heat stored in the Earth’s crust. This process involves drilling deep wells to access underground reservoirs of hot water or steam. The extracted steam is used to drive a turbine, converting thermal energy into mechanical energy, which is then transformed into electricity.

Geothermal power plants typically operate with an efficiency of 10-20%. They have low operating costs but with high initial costs due to drilling and infrastructure. Despite these upfront costs, geothermal energy offers a reliable, constant power supply and produces minimal greenhouse gas emissions, making it a sustainable and environmentally friendly energy source.

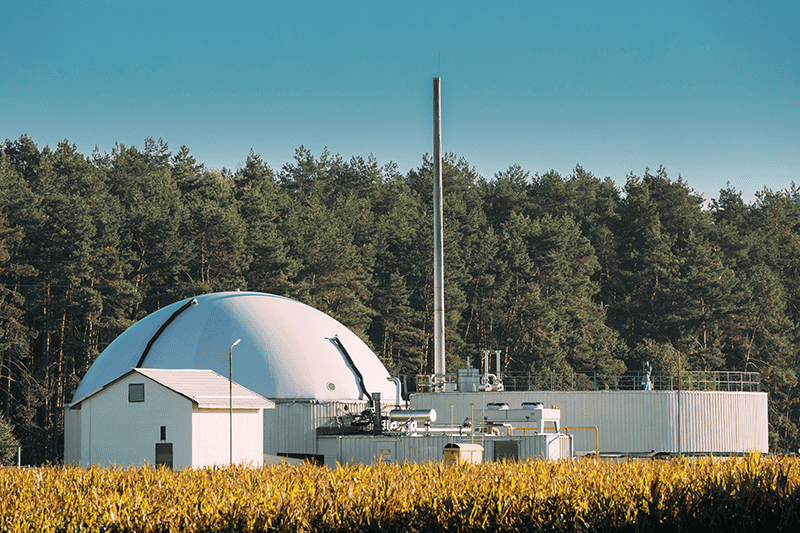

Biomass Power

Biomass power operates similarly to fossil fuel by burning combustible material to convert chemical energy into electricity. Except, instead of burning fossil fuel, biomass power operates by burning organic materials such as wood, agricultural residues, and dedicated energy crops.

Biomass is considered carbon neutral because the CO2 released during combustion is roughly equivalent to the amount absorbed by the plants during their growth, making it a more sustainable option compared to fossil fuels.

Biomass power has a relatively high efficiency of 20-30%, and it is most effective in areas with abundant organic waste. Large-scale biomass plants can potentially help reduce food waste and mitigate greenhouse gas emissions by converting organic waste into energy. Instead of discarding them into landfills where it contributes to methane emissions.

Renewable Energy Metering

One major issue of renewable energy is that the natural resources are often unstable. Take wind power as an example. It is impossible to control the wind speed. Rapid changes in wind speed can affect power output. If the power is delivered to the grid without monitoring, that may affect its stability.

This is why implementing a power metering system is critical for renewable energy power plants. Accuenergy manufactures a suite of metering devices covering various applications and scenarios, from DC power to AC power, single-phase to three-phase, and power metering to power quality analysis. Accuenergy can help operators optimize energy output, improve efficiency, and maintain a reliable power system.
